Component Inspection

B1338 FIS (Front Impact Sensor)-Center Defect

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF" and Using a scan tool, clear the DTC.
2. Ignition "OFF".
3. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
4. Disconnect Center FIS connector.
5. Substitute the Center FIS and check for proper operation.

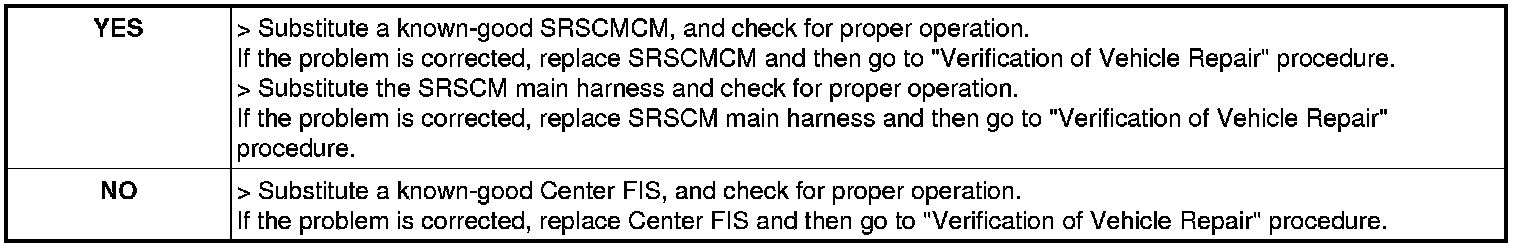

6. Is DTC present problem?
