Monitor DTC Status

P0011 \'A\' Camshaft Position-Timing Over-Advanced or System Performance (Bank 1)

Scantool Diagnostics

Monitor DTC Status

1. Connect scantool to Data Link Connector (DLC).
2. IG "ON".
3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
4. Read "DTC Status" parameter.

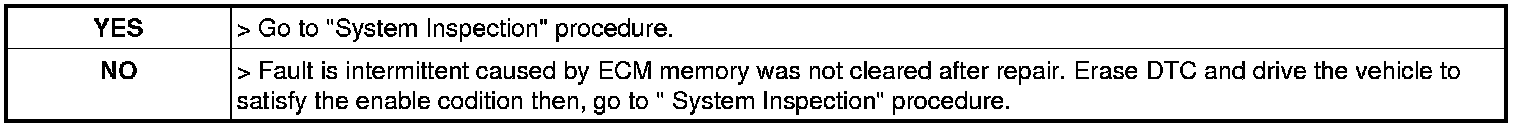

5. Is parameter displayed "Present fault"?
