Repair Procedures

Removal

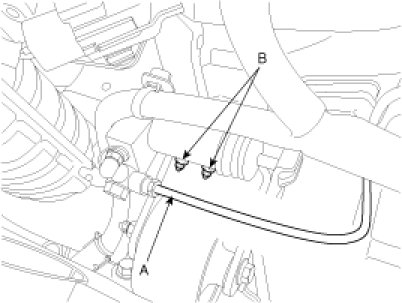

1. Drain the brake fluid through the bleed plug(A).




2. Disconnect the clutch tube(A).




3. Remove the two clutch release cylinder mounting nuts(B-2ea).

Installation

1. Coat the clutch clevis push rod specified grease.

Specified grease: CASMOLY L9508





2. Install the release cylinder mounting nuts(B-2ea).

Tightening torque :
15 - 22Nm (150 - 220 kgf.cm, 11 - 16 lb-ft)





3. Install the clutch tube(A).
4. Refill the brake fluid.
5. Bleed the air in the clutch system.
(refer to Bleeding in Service Adjustment Procedure)
