Input Speed Sensor

Removal

1. Remove the battery terminal.
2. Remove the battery and battery tray.
3. Remove the air duct.
4. Remove the air cleaner assembly.
5. Remove the input speed sensor connector (A).

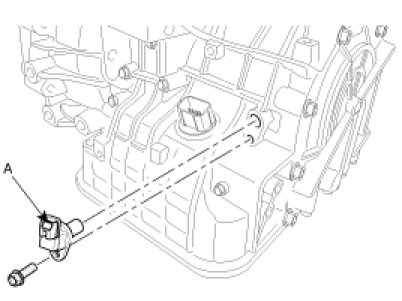

6. Remove the input speed sensor(A).






Installation

1. Install the new O-ring to the input speed sensor.
2. Install the input speed sensor (A).

Tightening torque :
10 - 12Nm(1.0 - 1.2kgf.m, 7 - 8lb-ft)


CAUTION:
While installing the input shaft speed sensor, do not allow dust or other foreign particles to enter the transaxle.




3. Check the connector for dust, dirt, or oil, and then connect the input speed sensor connector (A) securely.




4. Installation is the reverse of removal.
