Repair procedures

Removal

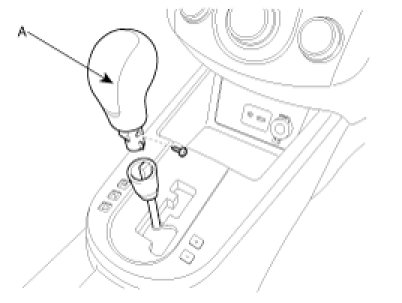

1. Remove the shift lever knob (A).




2. Remove the center console. (refer to Console in BD group)

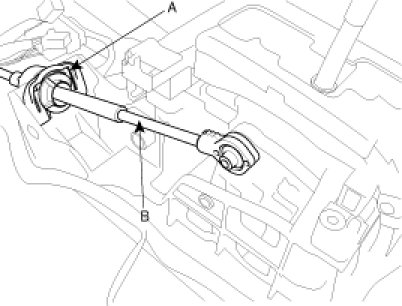

3. Remove the shift cable assembly (B) by removing the clamp (A).

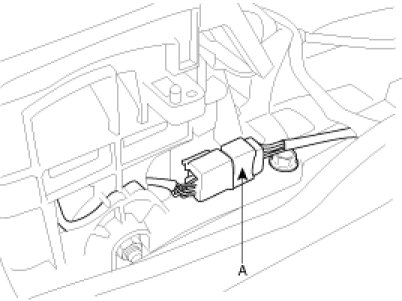

4. Disconnect the interlock switch connector (A).

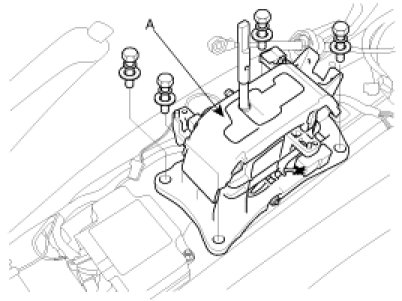

5. Remove the shift lever assembly (A).

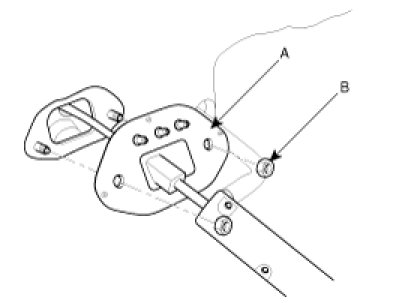

6. Remove the retainer (A) and nuts (B).

NOTE:
In case, remove the crush pad and cowl cross bar. (refer to Crush pad in BD group and Heater unit in HA group)




7. Remove the shift cable assembly from the transaxle (refer to Automatic transaxle's removal).
8. Remove the shift cable assembly.

Installation

1. After placing the manual lever in N position, install the shift cable to the transaxle. (refer to Automatic Transaxle Installation)
2. Install the retainer (A) and nuts (B).

Tightening torque :
12 - 15Nm (1.2 - 1.5kgf.m, 8.7 - 10.8Ib-ft)


NOTE:
In case, install the crush pad and cowl cross bar. (refer to Crush pad in BD group and Heater unit in HA group)




3. Install the shift lever assembly (A).

Tightening torque :
9 - 14Nm (0.9 - 1.4kgf.m, 6.5 - 10.1Ib-ft)





4. Connect the interlock switch connector (A).




5. Install the shift cable assembly (B) by installing the clamp (A).




6. Install the center console. (refer to Console in BD group)
7. Install the shift lever knob (A).
