Campaign SA047 - Front Strut Noise Repair
GROUP CHASSISNUMBER 025
MODEL 2010MY FORTE/FORTE KOUP (TD)
DATE JULY 2010
SUBJECT:
COMBINED TSB / SERVICE ACTION: FORTE (TD) FRONT STRUT NOISE REPAIR (SA047)
This bulletin provides information relating to some Forte (TD) vehicles built from March 3, 2009 to March 18, 2010 that may exhibit abnormal noise from the front strut(s) while driving over a speed bump or similar road conditions during the winter months. This concern is caused by interference between insulator strut bearing and dust cover bumper rubber. To correct this condition a strut insulator pad will need to be installed on the bottom of the insulator strut bearing assembly contact surface. This procedure will need to be performed on both L/R front struts.
To improve customer satisfaction, Kia is requesting the completion of this Service Action on all affected 2010MY Forte / Forte Koup (TD) vehicles.
For vehicles not on the Affected Vehicles List, but with a customer concern; perform the following procedure outlined in this bulletin and submit a warranty claim per "customer concern" (Standard TSB) claim information at the end of this bulletin.
NOTICE
A Service Action is a repair program without customer notification that is performed during the warranty period. Any dealer request to perform this repair outside the warranty period will require DPSM approval.
Repair status for a VIN is provided on WebDCS (Service>Warranty Coverage> Warranty Coverage Inquiry>Campaign Information). Not Completed Recall/Service Action reports are available on WebDCS (Consumer Affairs>Not Completed Recall Recall VIN>Select Report).
The issue number is SA047.
Service Procedure
1. Use a vehicle hoist or similar device to lift up the vehicle off the ground.

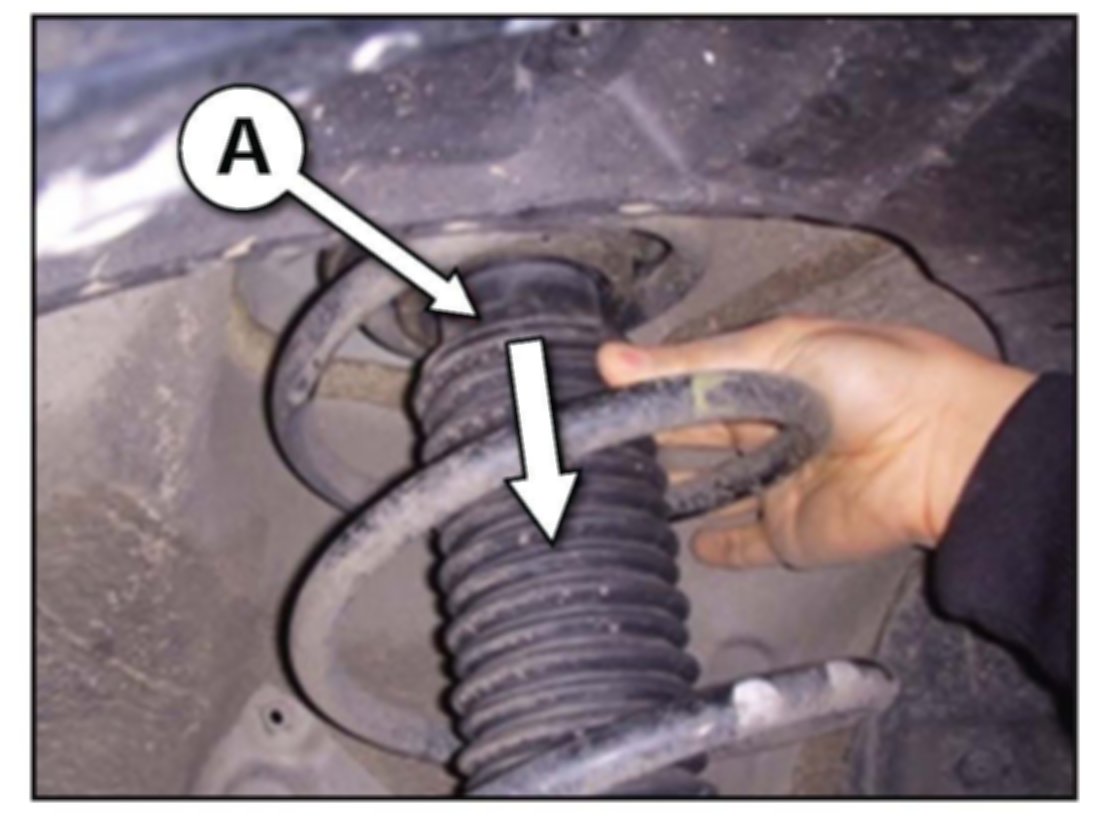

2. Pull down the front strut dust cover and bumper rubber (A) as shown in the photo.
NOTICE
Pulling the dust cover downward will allow access to bumper rubber contact surface.

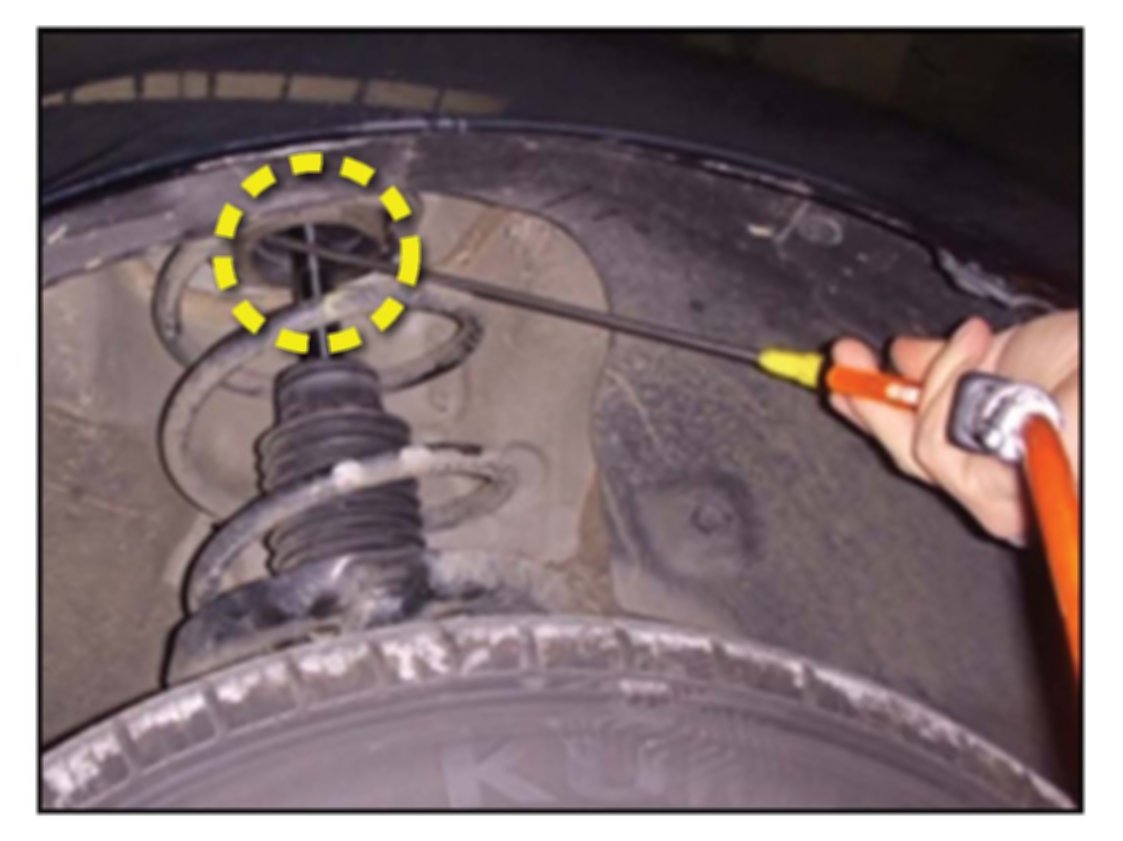

3. Use a clean rag or compressed air to remove any dirt or foreign material from the surface area where the strut insulator pad will be attached.
CAUTION
Always wear safety eyewear when blowing out the dirt and foreign material.

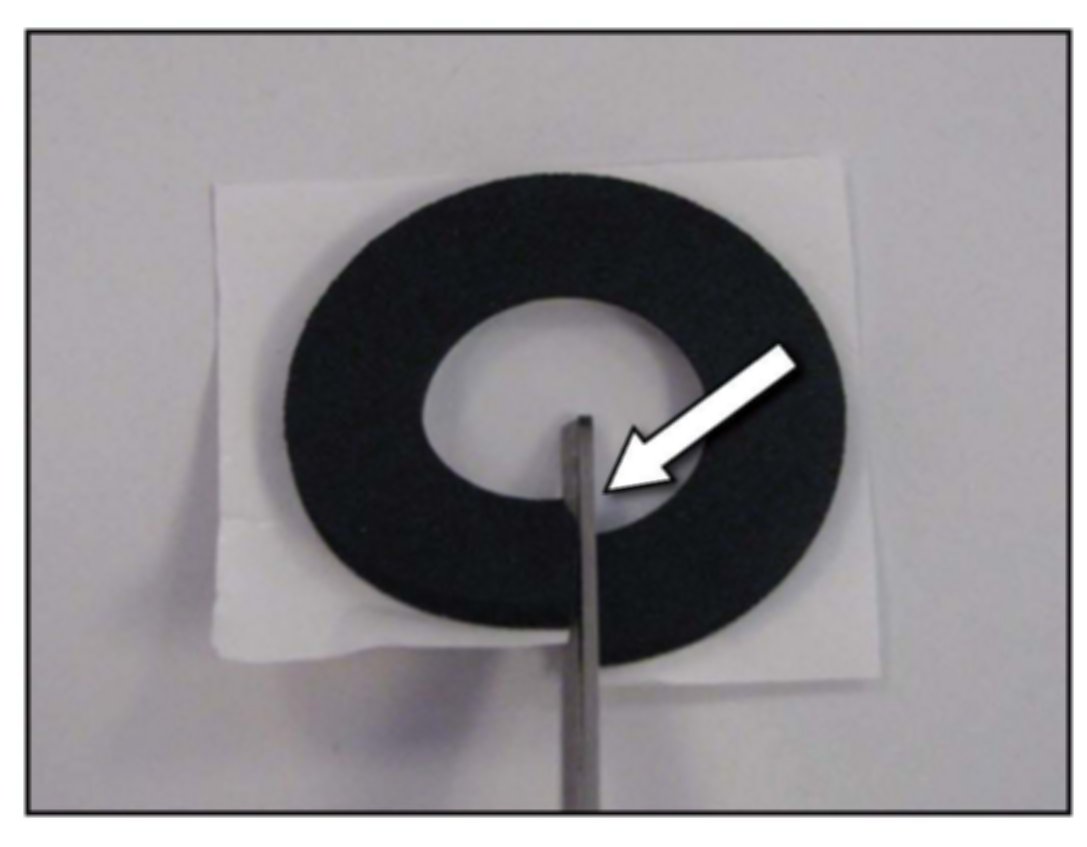

4. Use a pair of scissors to make a cut across one side of the strut insulator pad as indicated by the arrow.

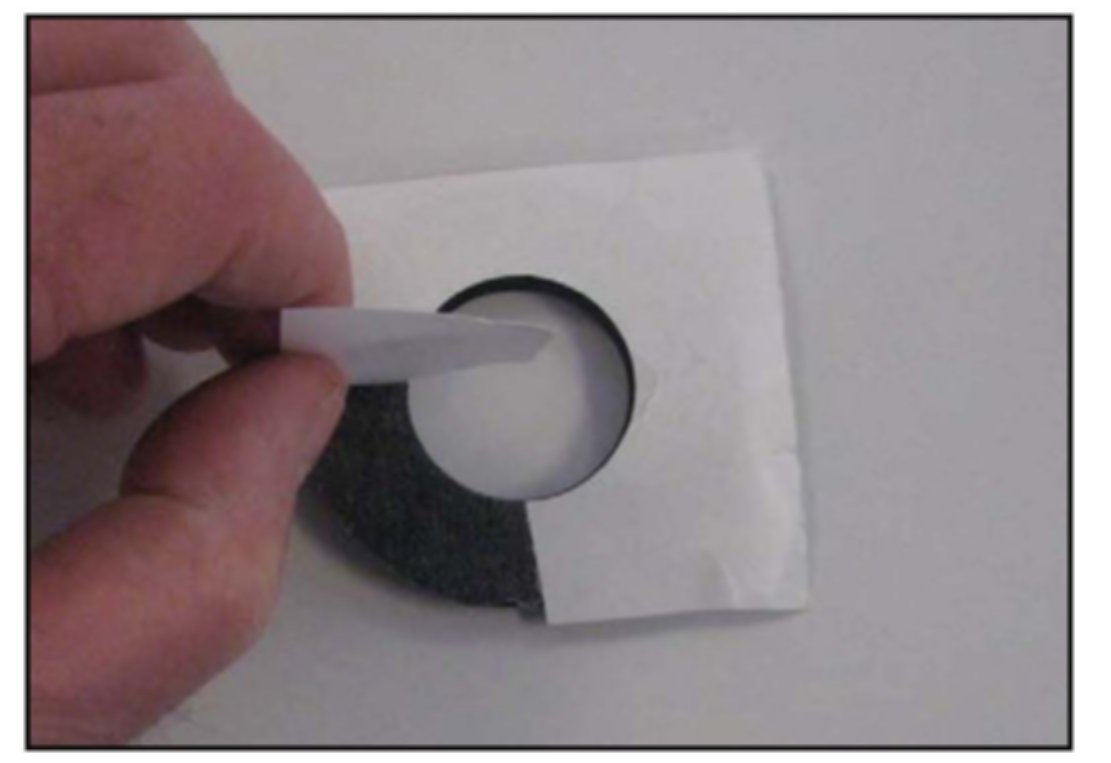

5. Remove the protective cover from the strut insulator pad as shown in the photo.

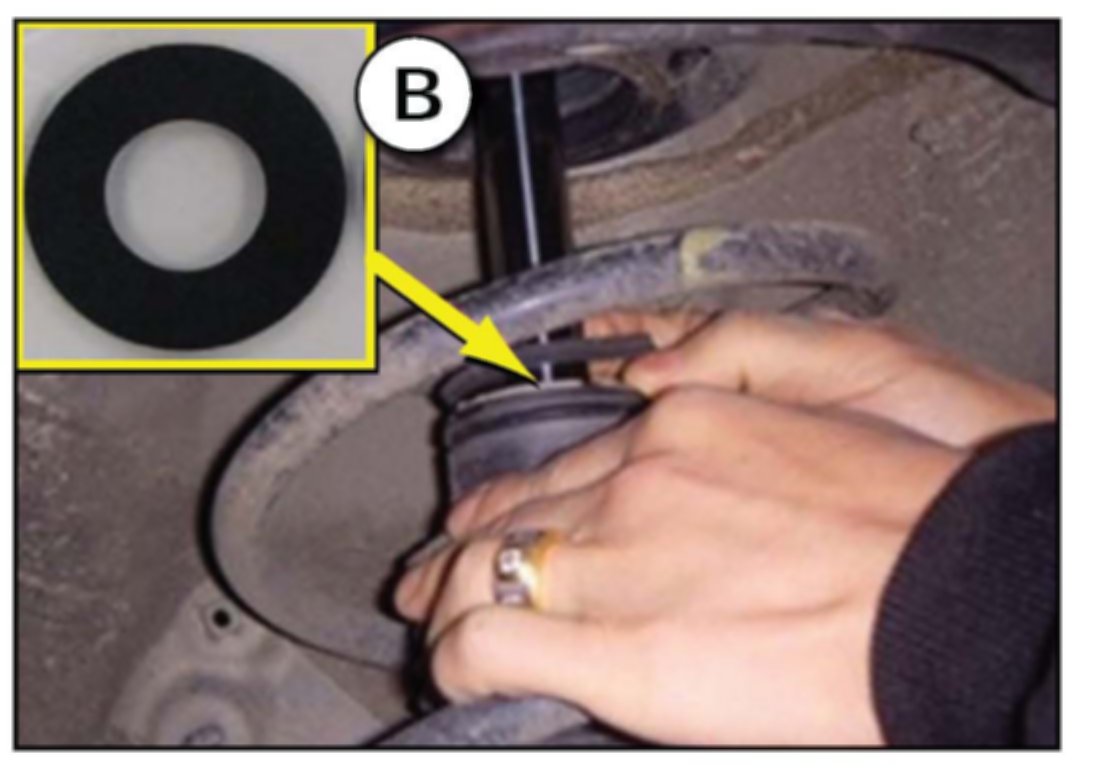

6. Place the strut insulator pad (B) on the top of the dust cover bumper rubber with the adhesive side of the pad facing upward.

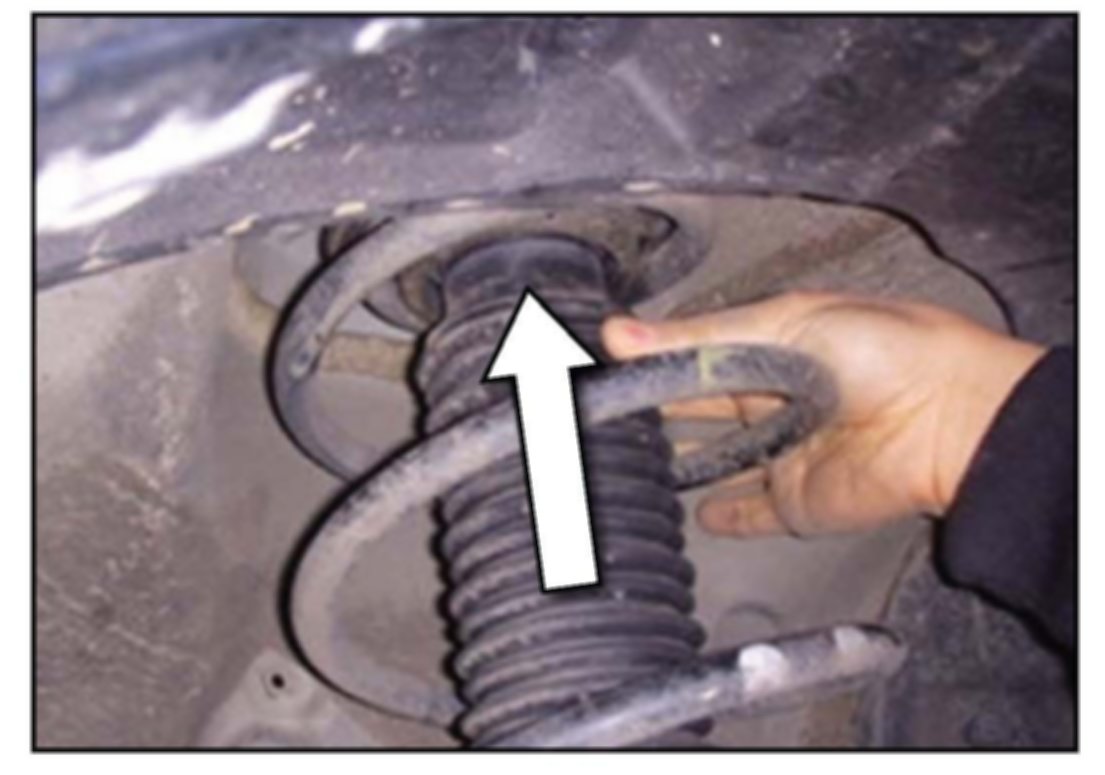

7. Push dust cover bumper rubber upward to attach the pad to the bottom of the insulator strut bearing.
8. Repeat above procedure on the strut assembly on the opposite side.

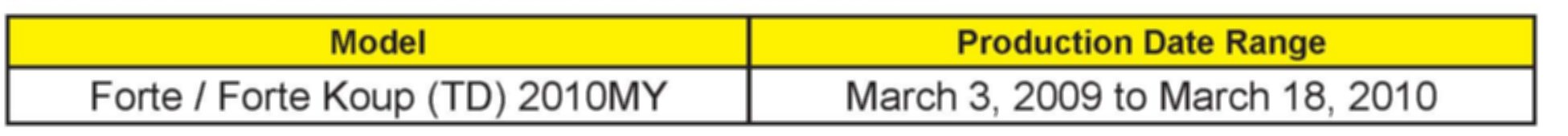

AFFECTED VEHICLE PRODUCTION RANGE

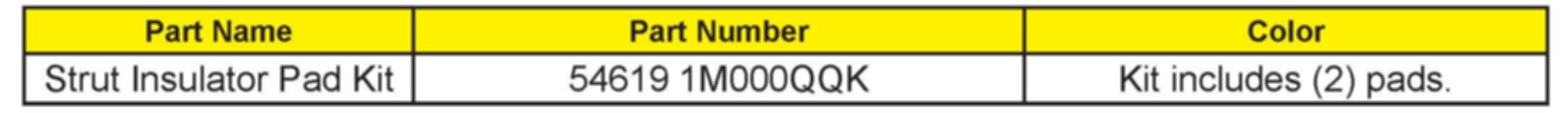

REQUIRED PARTS
SERVICE ACTION WARRANTY CLAIM INFORMATION
STANDARD WARRANTY CLAIM INFORMATION
NOTICE
VIN Inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference SA047 when accessing the WebDCS system.
