Disassembly

Disassembly

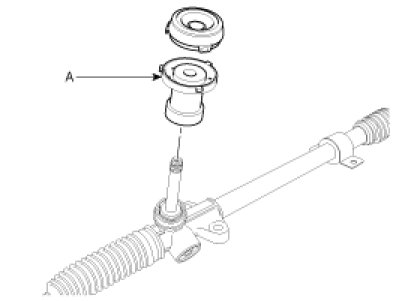

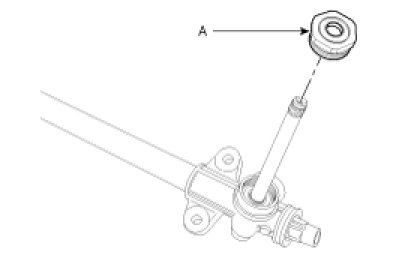

1. Remove the dust packing & cap (A) from the pinion housing.

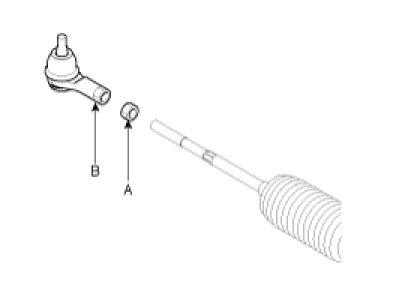

2. Loosen the lock nut and then remove the tie rod end (B) and lock nut (A) from the tie rod.

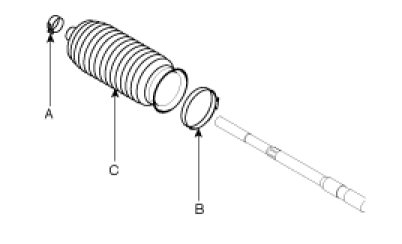

3. Remove the bellows clip (A) and band (B) and then pull the bellows (C) away from the end of the tie rod.




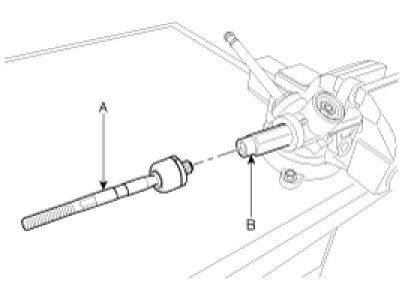

4. Remove the tie rod (B) from the rack bar (A) by unscrewing the tie rod inner ball joint.




5. Remove the plug (A) from the pinion housing.

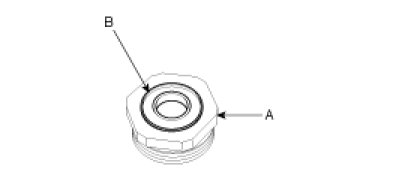

6. Remove the oil seal (B) from the plug (A).

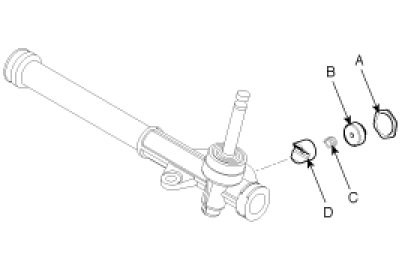

7. Remove the lock nut (A), yoke plug (B), spring (C) and support yoke (D).

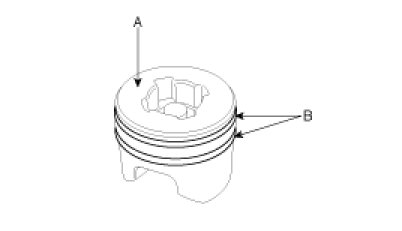

8. Remove the O-rings (B) from the support yoke assembly (A).

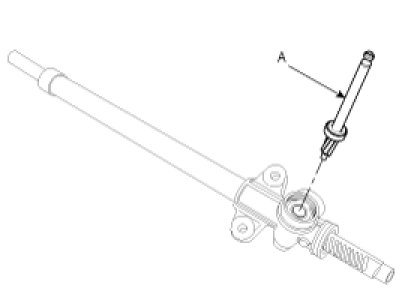

9. Pull the pinion assembly (A) out of the pinion housing.

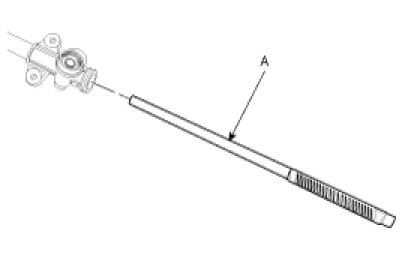

10. Pull the rack bar (A) out of the rack housing.
