Repair Procedures

Replacement

1. Drain the power steering fluid.
2. Remove the drive belt.

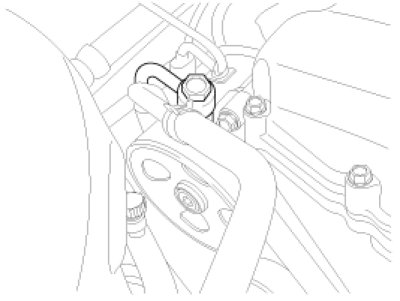

3. Remove the pressure hose from the oil pump and the suction hose from the suction pipe.

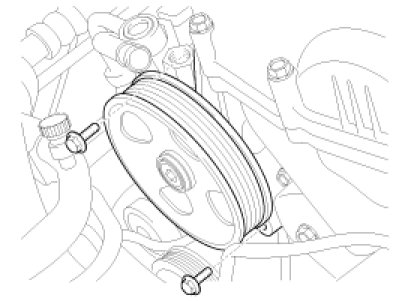

4. Loosen the mounting bolts and then remove the power steering pump.




5. Installation is the reverse of the removal.
