Home
>>
Kia
>>
2010
>>
Forte L4-2.4L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Keyless Starting System
>>
Locations
>>
Smart key System
Smart key System

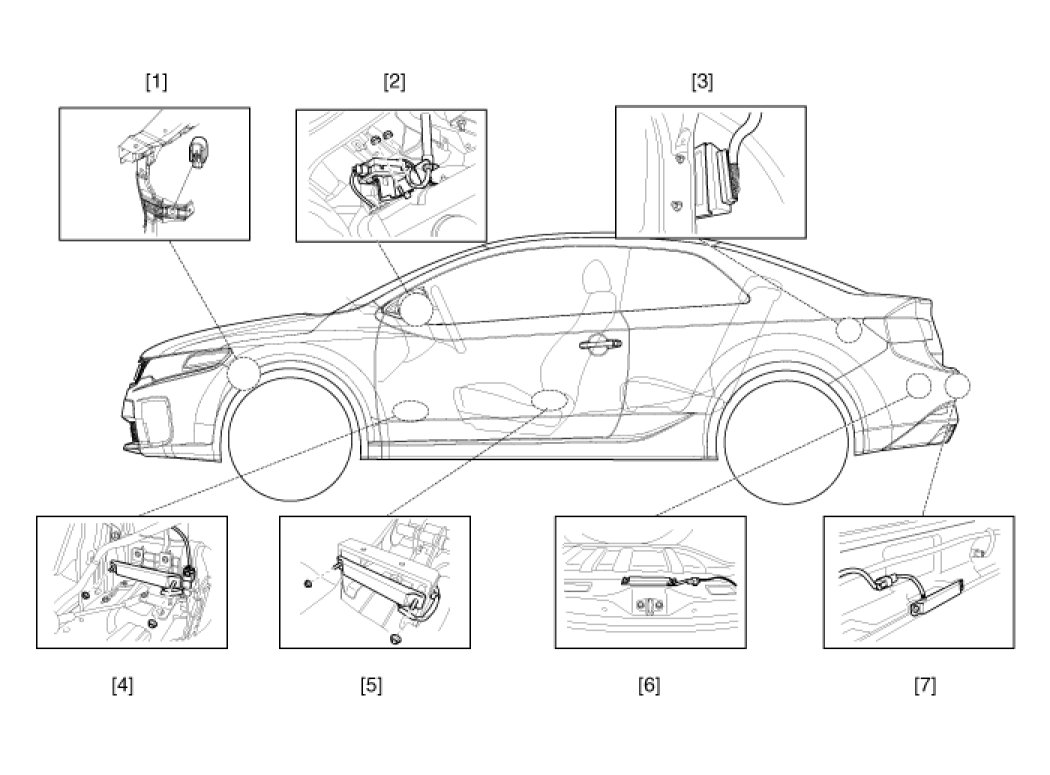

Component Location (1)

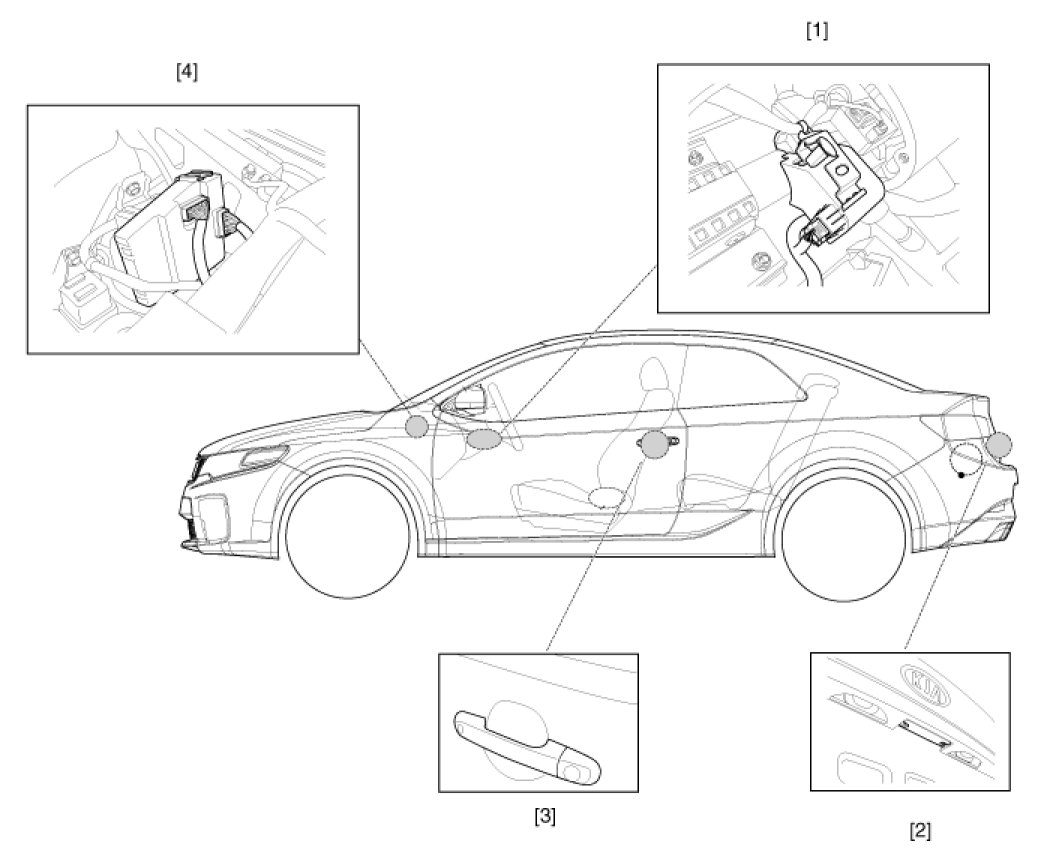

Component Location (2)
