Passenger Compartment Fuse Details (6)

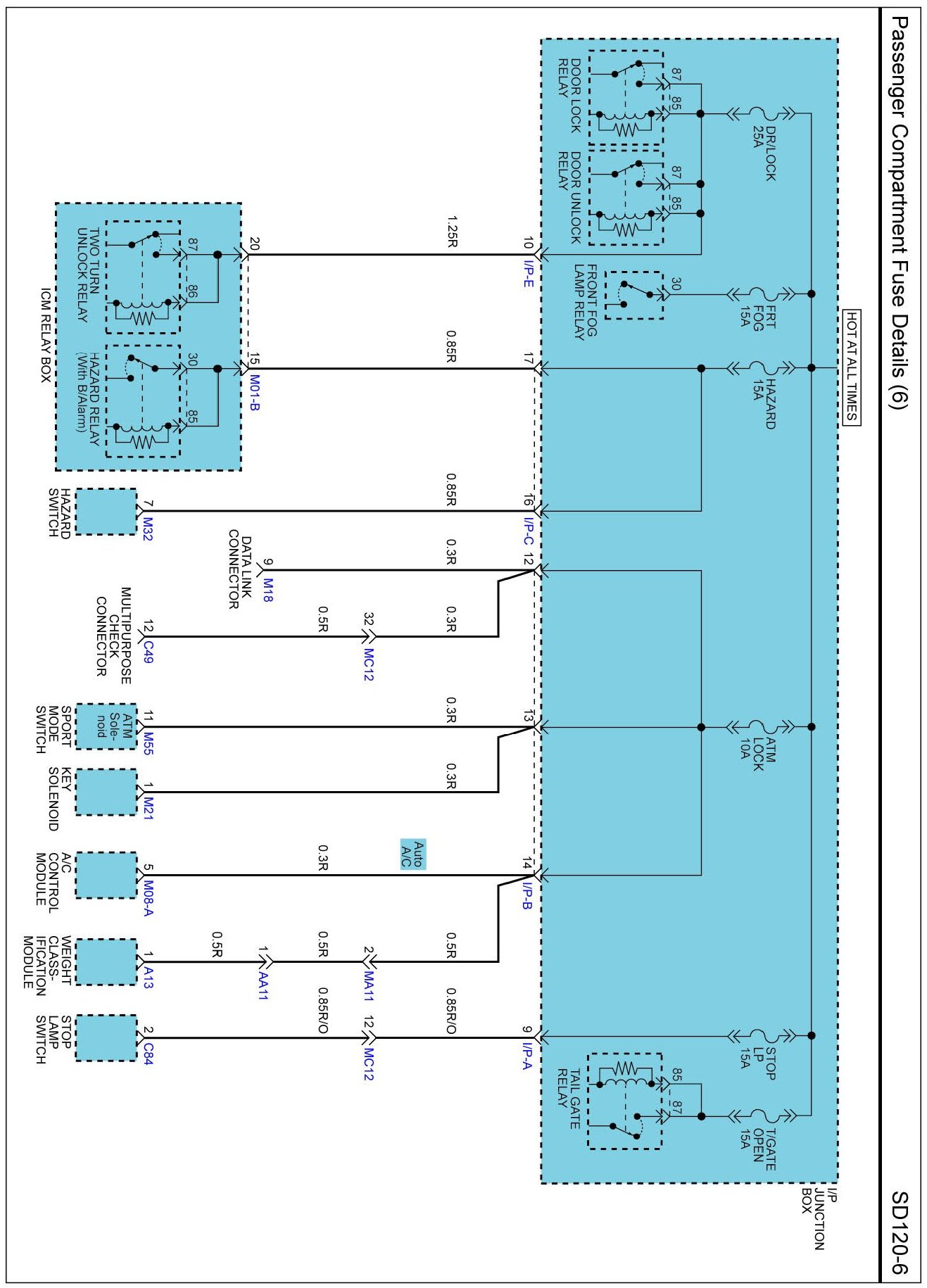

SD120-6 Passenger Compartment Fuse Details (6):

Previous Diagram: Passenger Compartment Fuse Details (5)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
