Home >> Kia >> 2010 >> Forte L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications

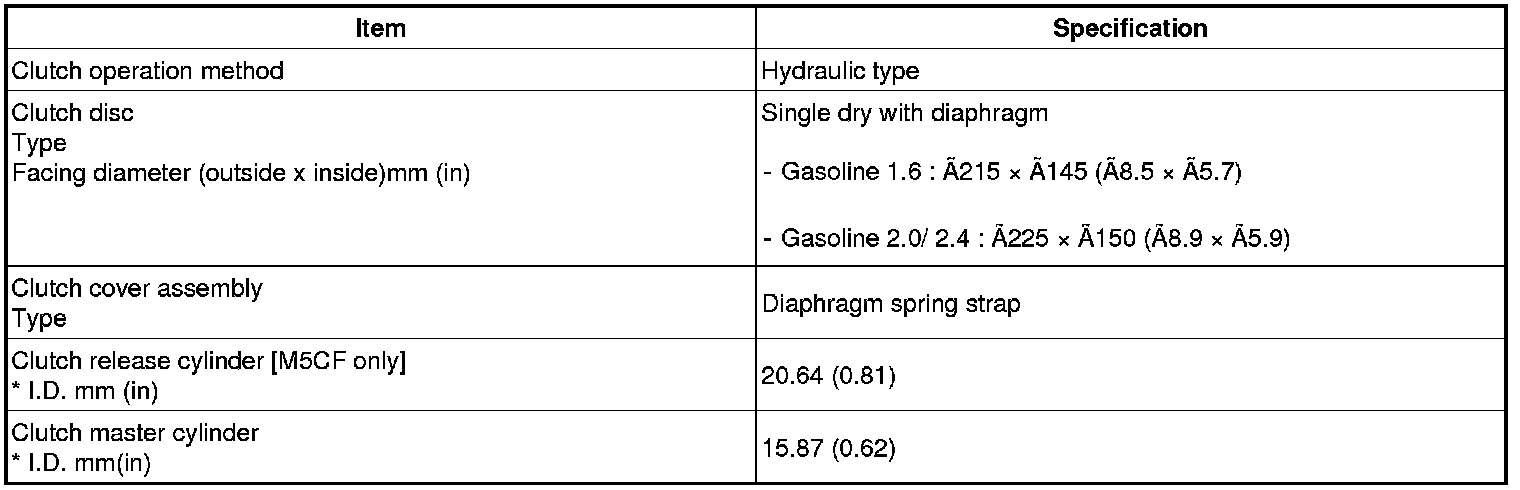

System Specifications





Specifications





* I.D: Inside diameter

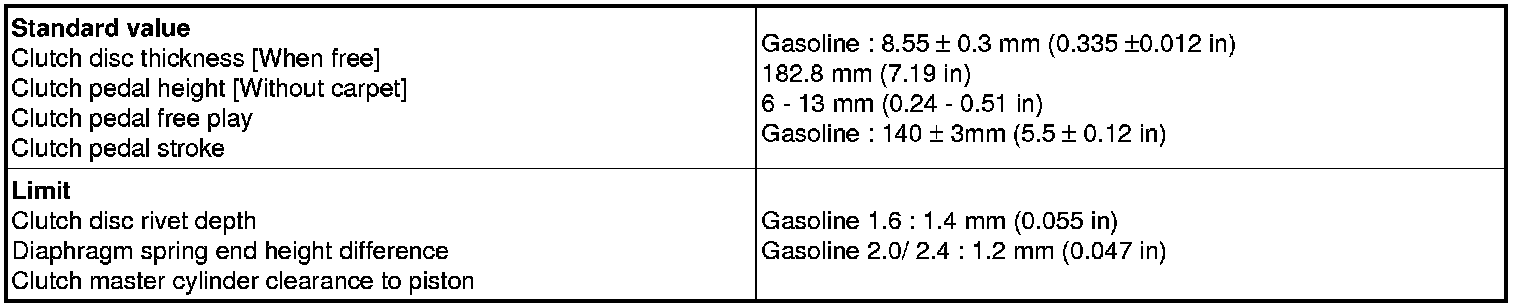

Service Standard

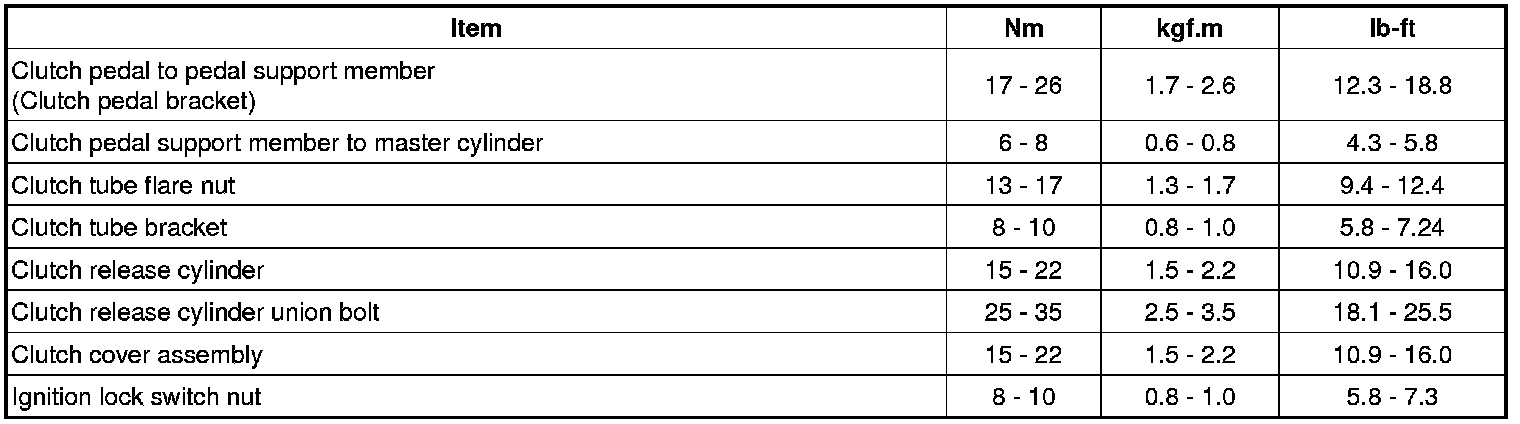

Tightening Torques
