Home >> Kia >> 2010 >> Forte L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> Brake Hose/Line

Brake Hose/Line

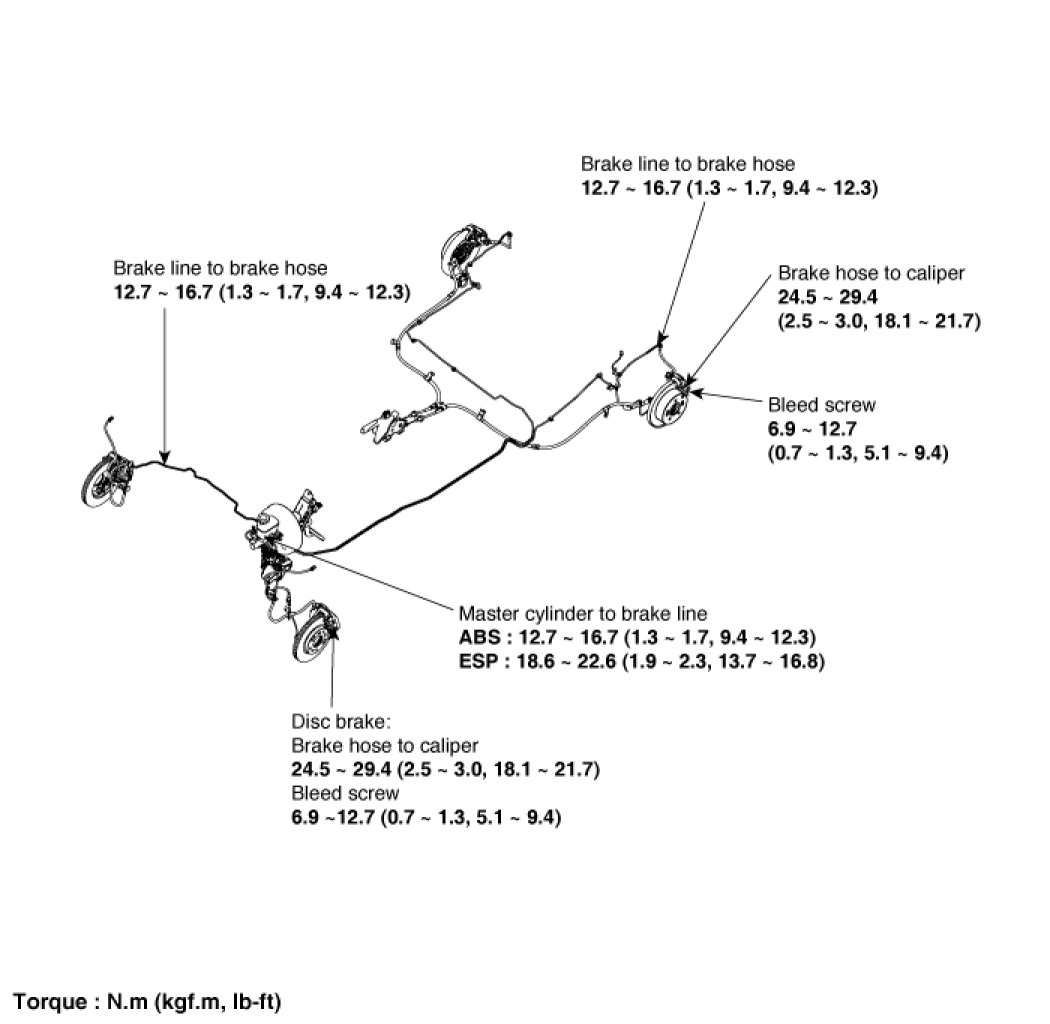

Components





WARNING:
When installing brake hose, be sure to comply with the torque specification to prevent twisted hose.
