Automatic Transmission/Transaxle
>>
System Specifications
>>
Automatic Transaxle System (Automatic Transaxle)
Automatic Transaxle System (Automatic Transaxle)

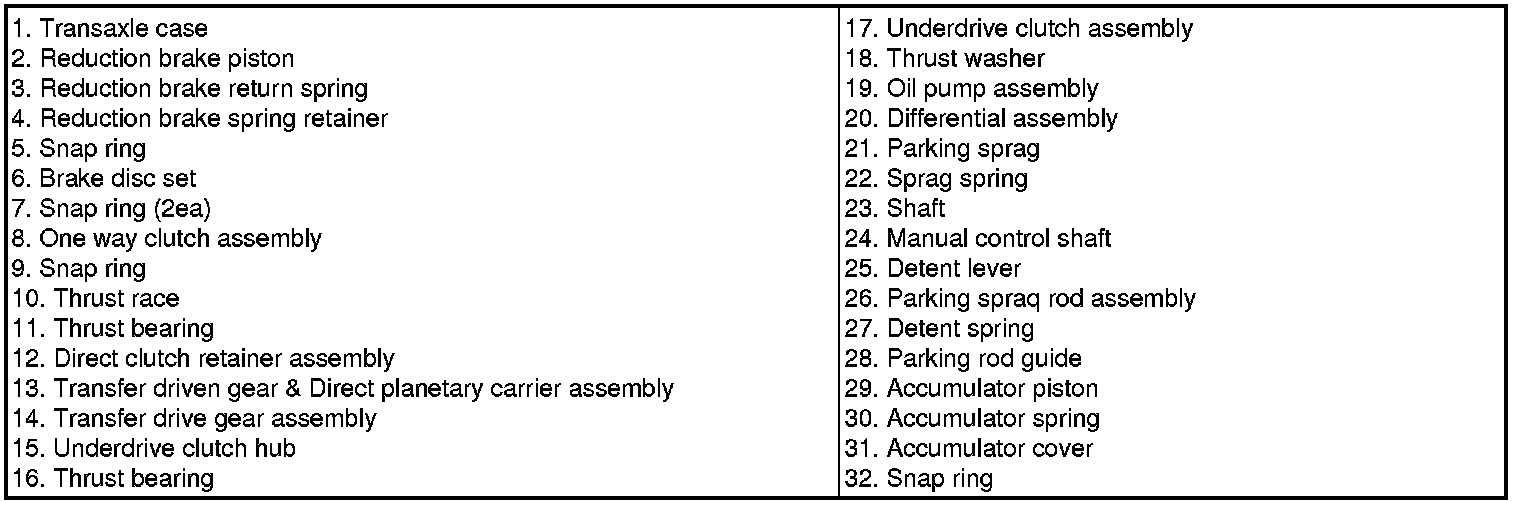

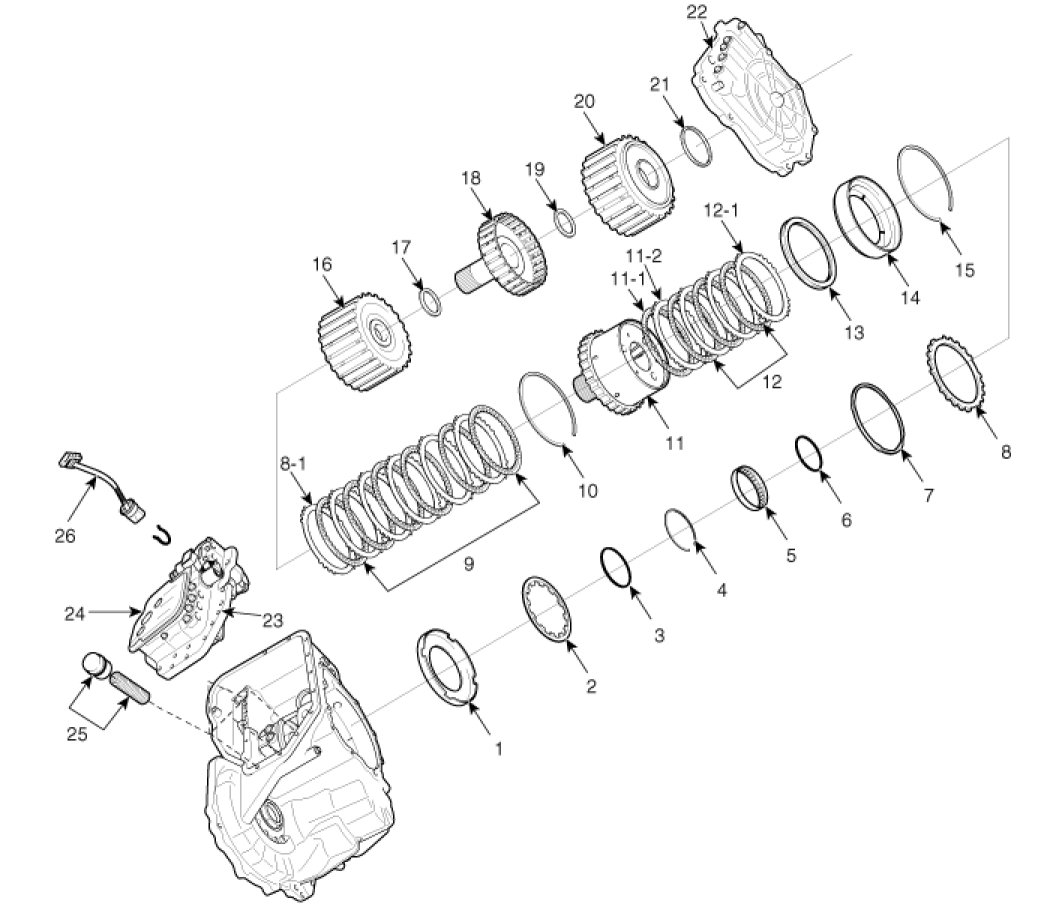

Components (1)

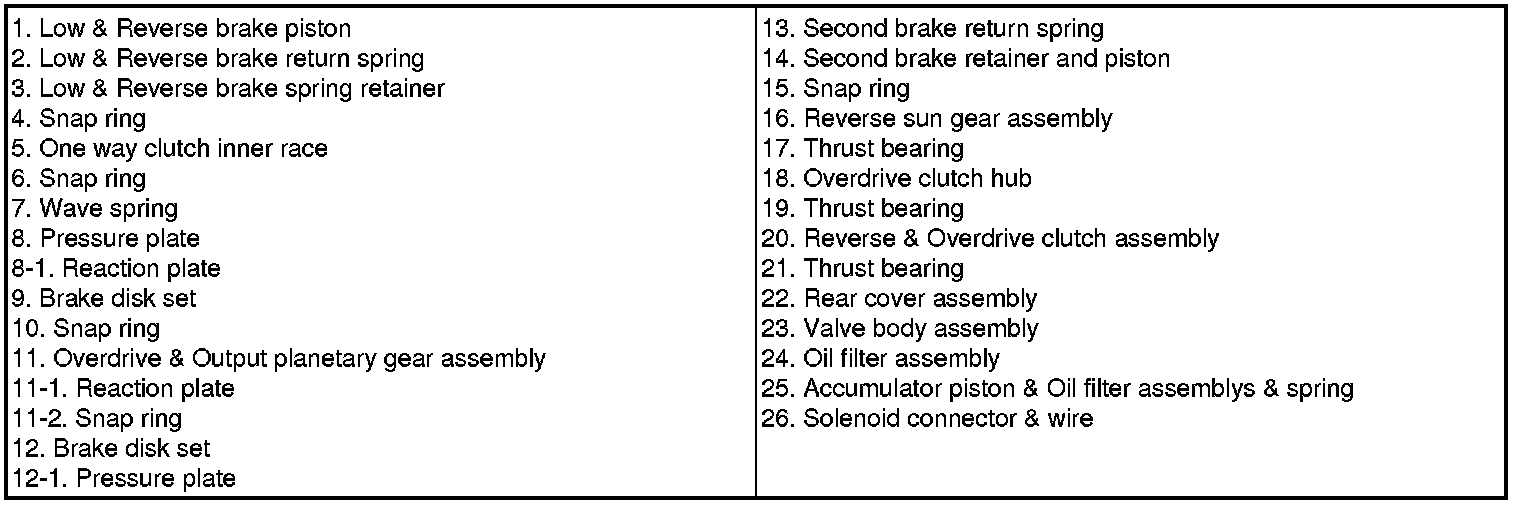

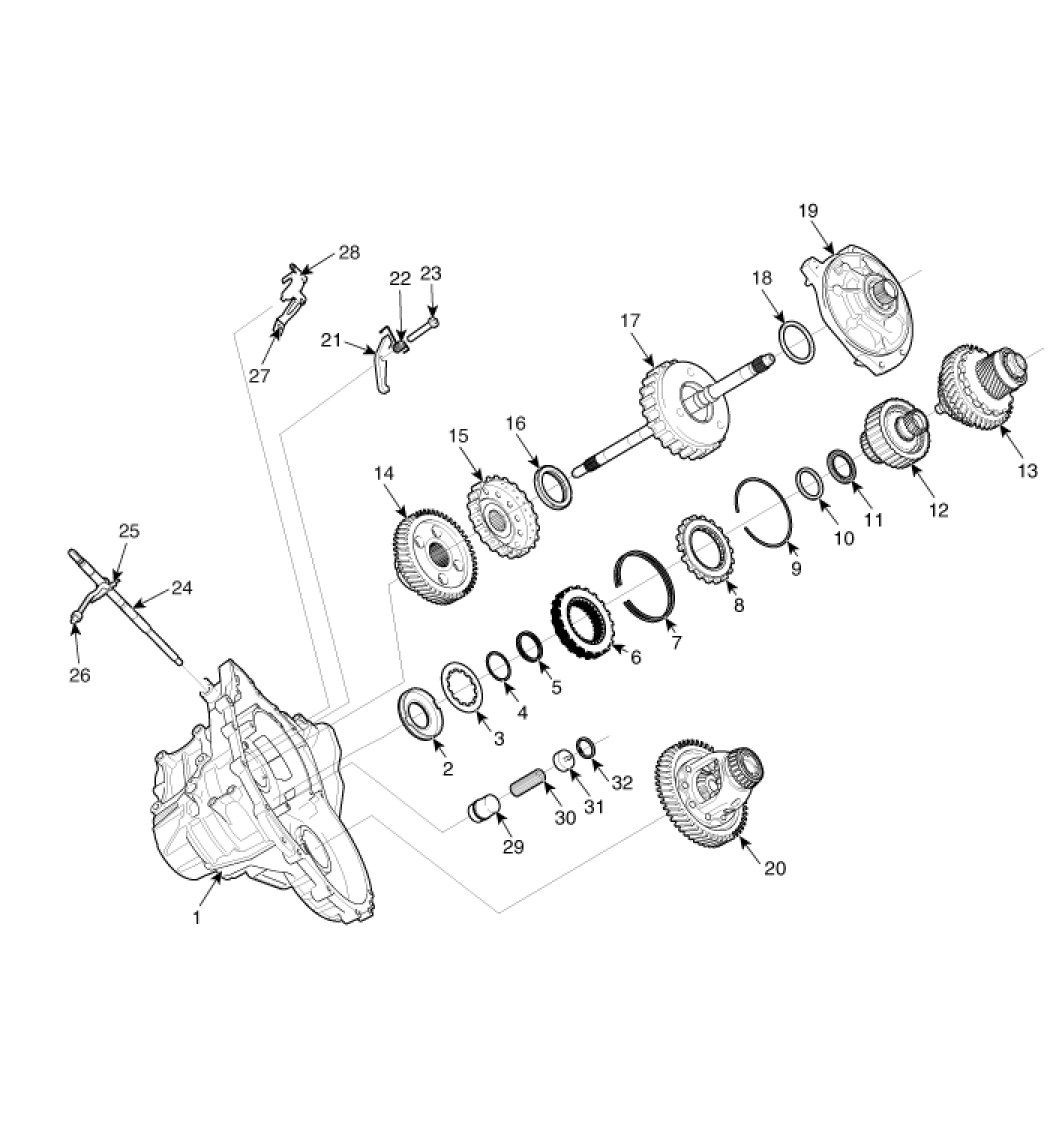

Components (2)
