Coupe

Replacement

Front Seat Belt Buckle Replacement
1. Remove the following items first.
A. Front seat assembly.
2. Remove the wire harness of buckle from seat.

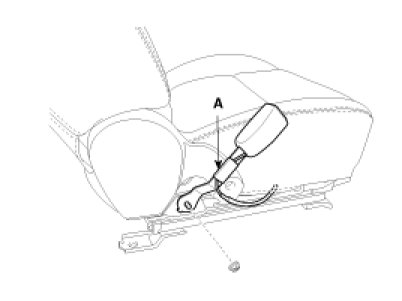

3. Remove the seat belt buckle (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)





4. Installation is the reverse of removal.
