Home
>>
Kia
>>
2010
>>
Forte L4-2.4L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Advanced
Advanced

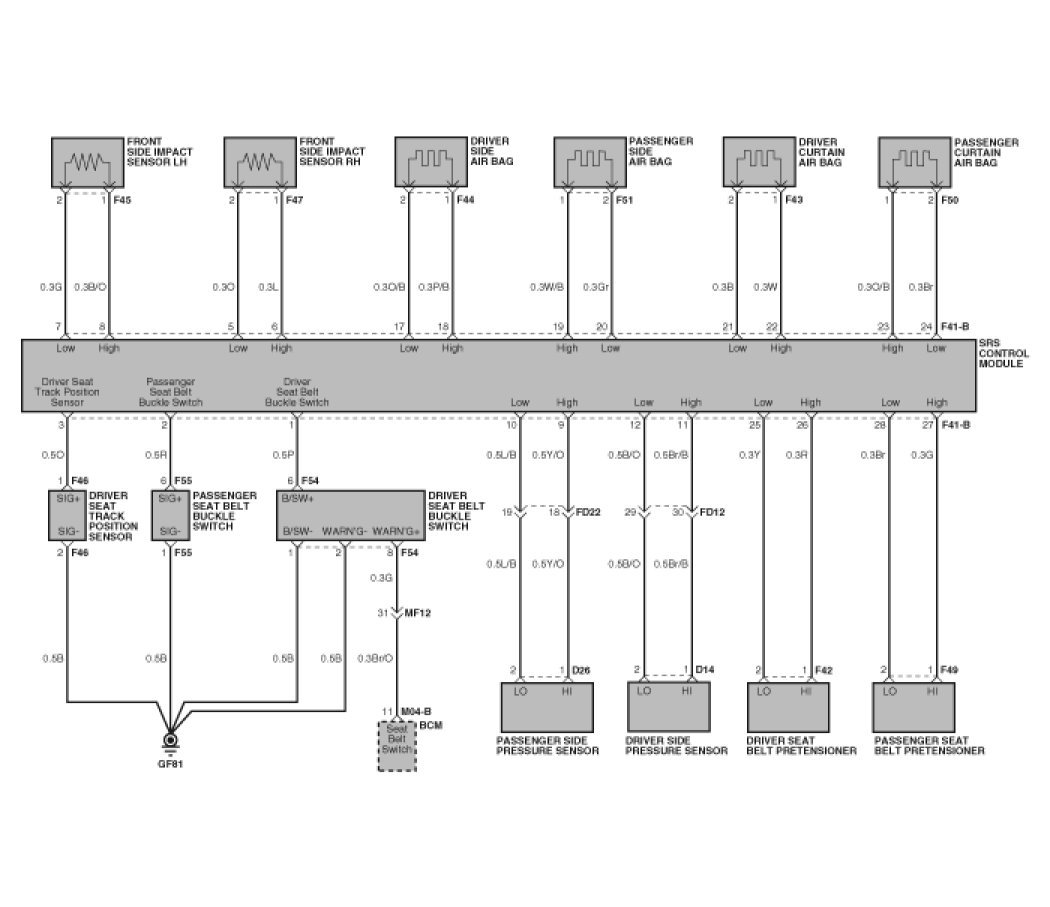

Circuit Diagram (1)

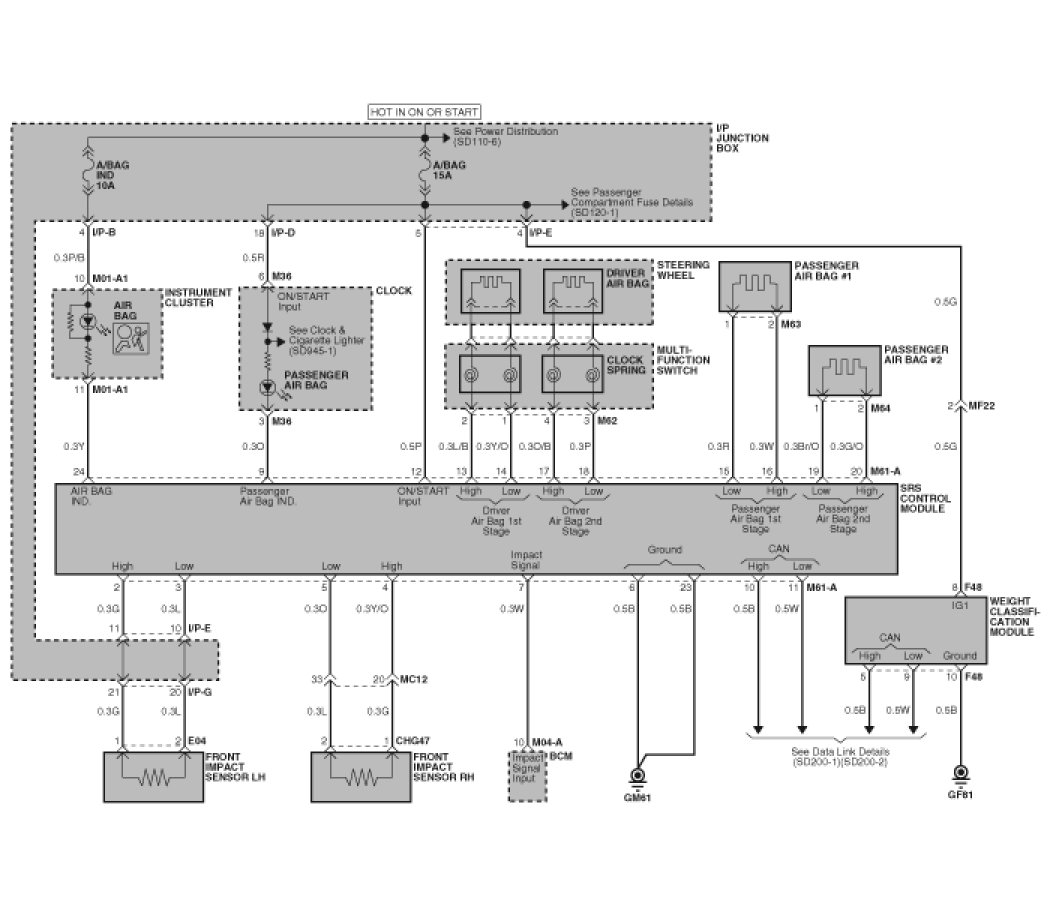

Circuit Diagram (2)
