Relay Box (Engine Compartment)

Inspection

1. Disconnect the negative (-) battery terminal.
2. Pull out the relay from the engine compartment relay box.

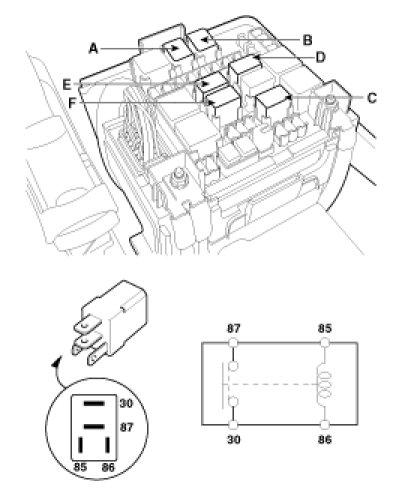

Power Relay (Type A)
Check for continuity between the terminals.
A : Fuel pump relay
B : A/C relay
C : Head lamp relay (Low)
D : Horn relay
E : Head lamp relay (High)
F : Front fog lamp relay

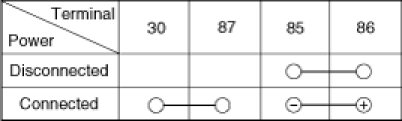

1. There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2. There should be no continuity between the No.30 and No.87 terminals when power is disconnected.

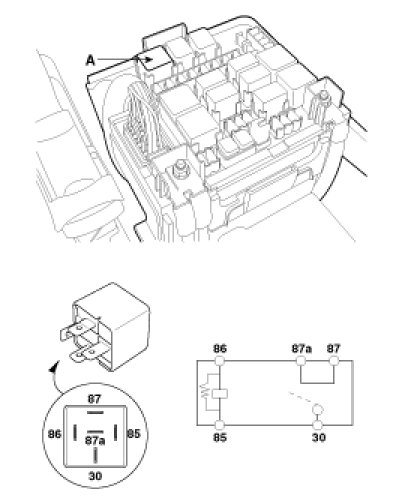

Power Relay (Type B)
Check for continuity between the terminals.
A : Wiper relay
1. There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2. There should be continuity between the No.30 and No.87 terminals when power is disconnected.

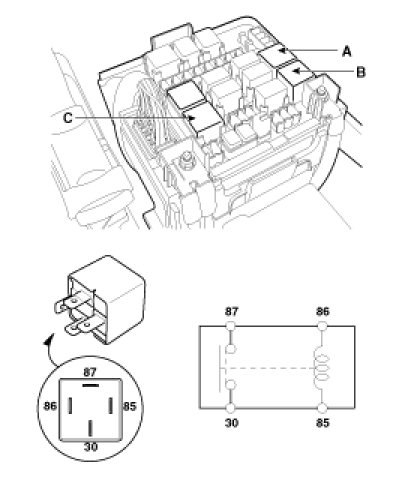

Power Relay (Type C)
Check for continuity between the terminals.
A : Condenser pan relay (High)
B : Condenser pan relay (Low)
C : Start relay

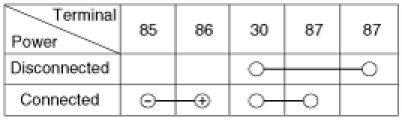

1. There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2. There should be no continuity between the No.30 and No.87 terminals when power is disconnected.

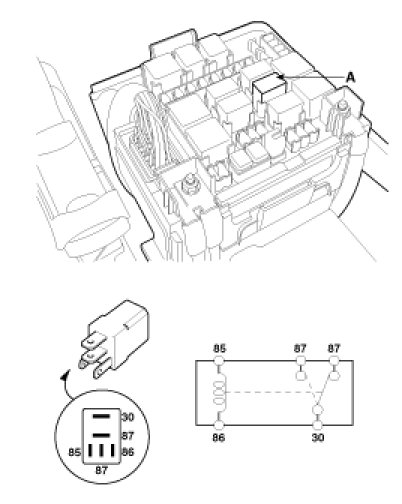

Power Relay (Type D)
Check for continuity between the terminals.
A : Main relay

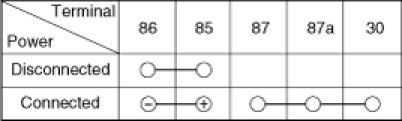

1. There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2. There should be continuity between the No.30 and No.87 terminals when power is disconnected.
