Relay Box: Application and ID

Fuse and Relay Information


I/P Junction Box View:




I/P Junction Box Circuit Details:




E/R Junction Box:




E/R Junction Box Circuit Details:

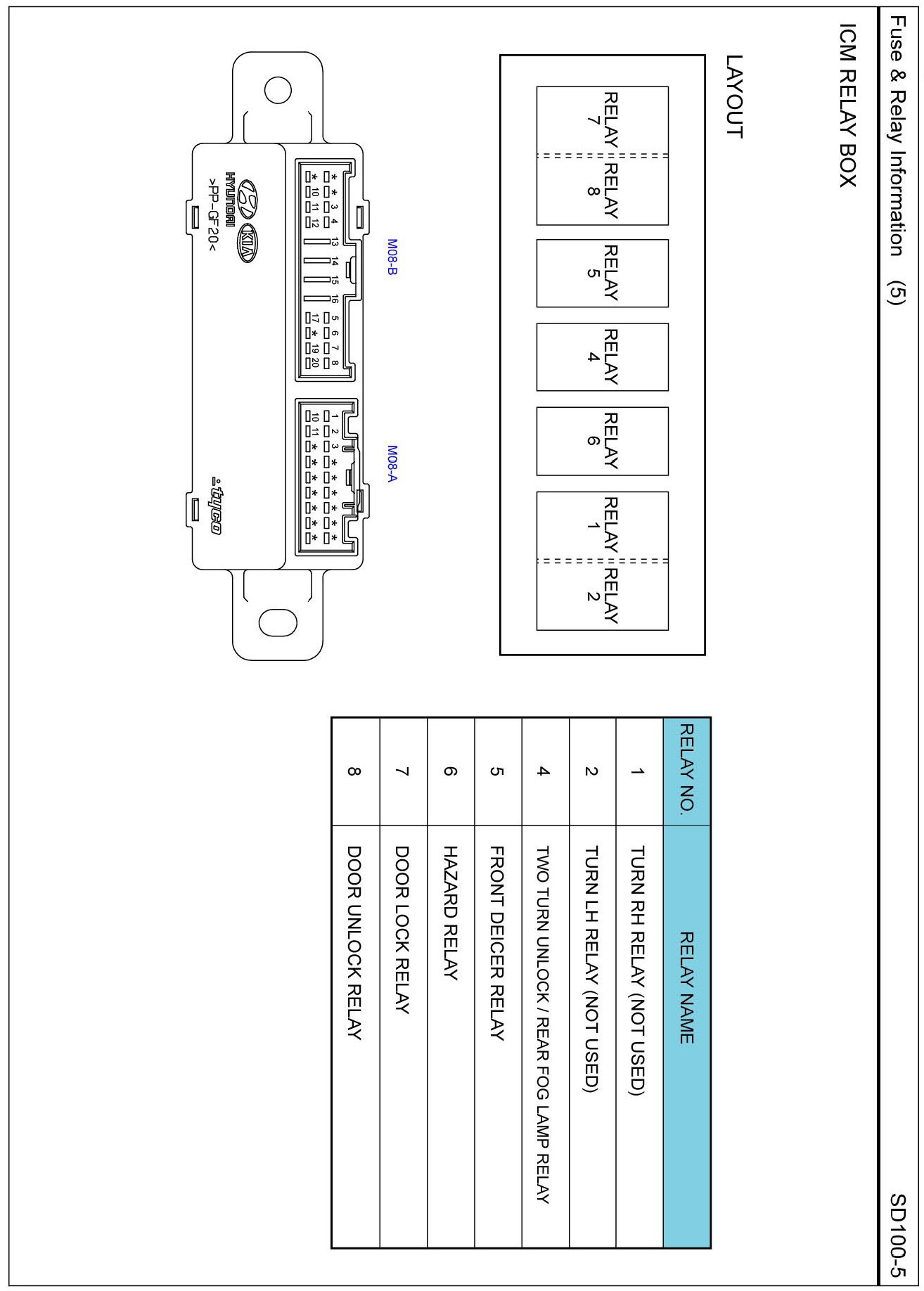

ICM Relay Box View:
