Positive Crankcase Ventilation Valve: Service and Repair

Removal

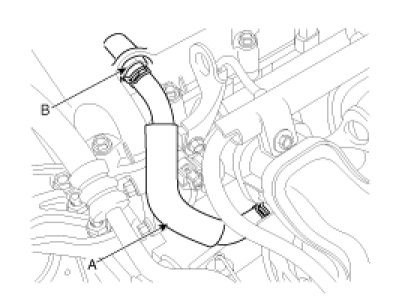

1. Disconnect the vapor hose (A).




2. Remove the PCV valve (B).

Installation

1. Installation is reverse of removal.

PCV Valve installation:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
