Evaporative Emission Control Canister: Testing and Inspection

Inspection

1. Check for the following items visually.
A. Cracks or leakage of the canister
B. Loose connection, distortion, or damage of the vapor hose/tube

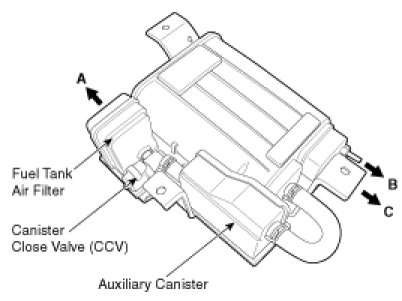

[SULEV]

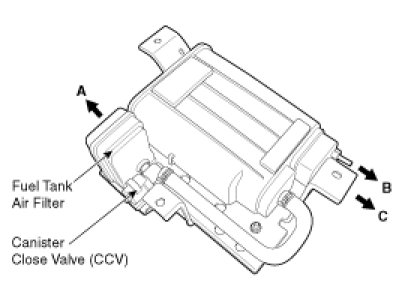

[ULEV]




A: To Fuel Tank Air Filter
B: To Intake Manifold
C: To Fuel Tank
