Turn Signal Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

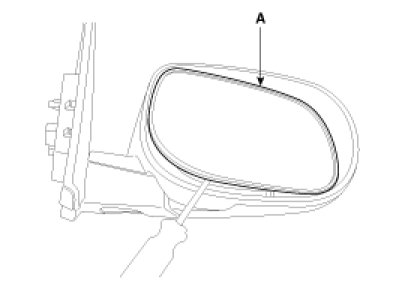

2. Remove the glass (A) from glass holder.

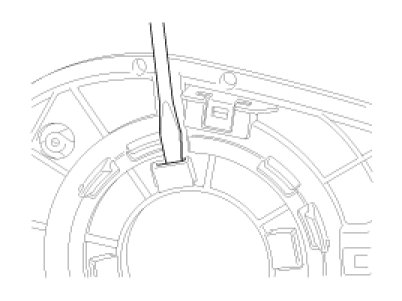

CAUTION:
Be careful not to damage the fixing clip.

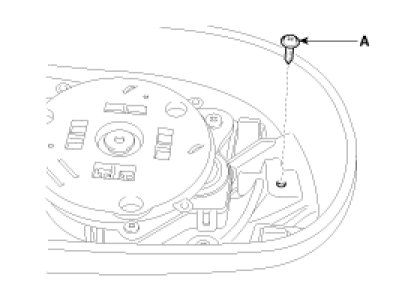

3. Remove the bulb mounting screw (A).

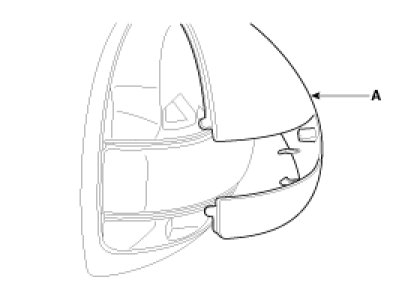

4. Remove the door mirror cover (A).

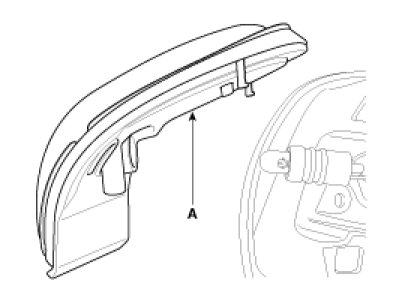

5. Detach the lens (A) from bulb of door mirror.

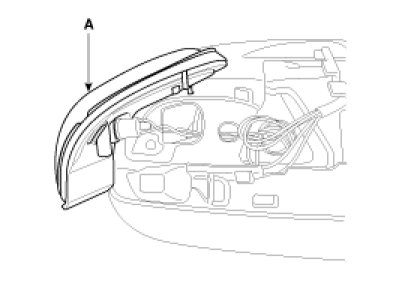

6. Detach the lens (A).

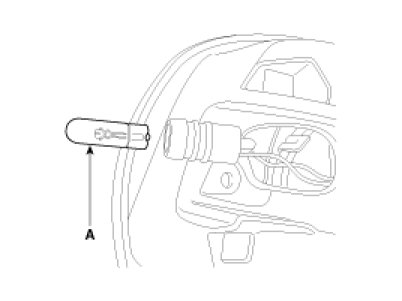

7. Replace the bulb (A) from bulb holder.






Installation

1. Install the lens and bulb.
2. Install the door mirror cover.
3. Install the door mirror.
4. Connect the negative(-) battery terminal.
