Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the side air vent(B) using the SST(A) (09840-1M100).





CAUTION:
Always use the SST(09840-1M100) to prevent the damage when removing the air vent.

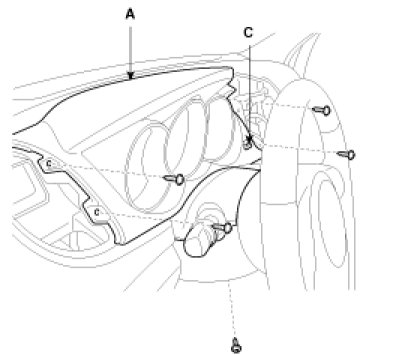

3. Remove the cluster fascia panel and upper shroud(A) after disconnecting the connector (C).

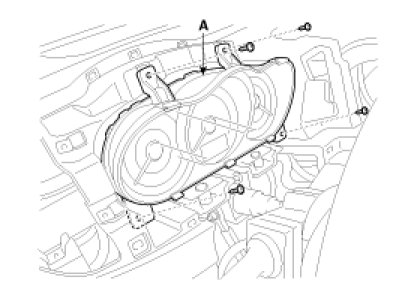

4. Remove the cluster fascia(A) from the housing after removing 4 screws.

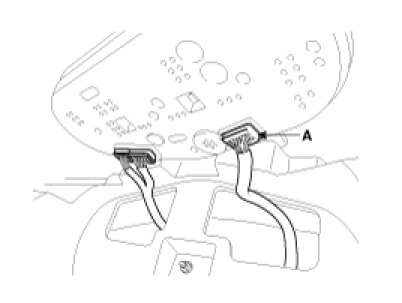

5. Disconnect the cluster fascia connecters(A) and then remove the cluster.






Installation

1. Connect the cluster connector.
2. Install the cluster assembly.
3. Connect the trip switch connector.
4. Install the center facia panel.
