Removal

Removal

Engine removal is not required for this procedure.

CAUTION:
- Use fender covers to avoid damaging painted surfaces.
- To avoid damaging the cylinder head, wait until the engine coolant temperature drops below normal temperature before removing it.
- When handling a metal gasket, take care not to fold the gasket or damage the contact surface of the gasket.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE:
Mark all wiring and hoses to avoid misconnection.

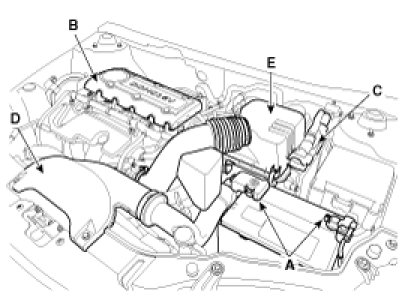

1. Disconnect the battery terminals (A).
2. Remove the engine cover (B).
3. Disconnect the ECM connector (C).
4. Disconnect the breather hose and then, remove the air duct (D) and air cleaner assembly (E).

Tightening torque :
7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)

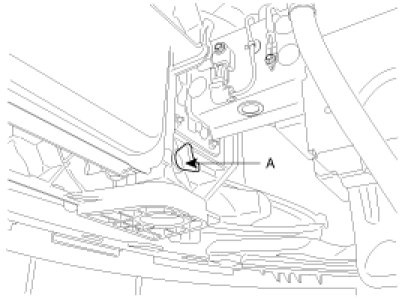

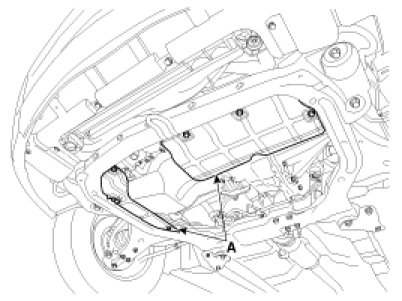

5. Remove the under covers (A).

Tightening torque :
9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)





6. Loosen the drain plug (A), and then drain the engine coolant.

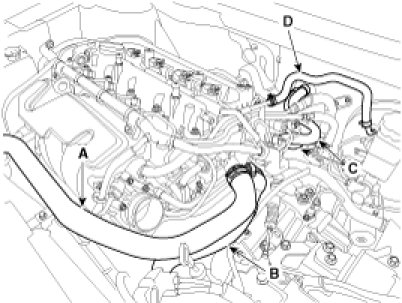

7. Remove the radiator upper hose (A) and lower hose (B).
8. Remove the heater hoses (C).

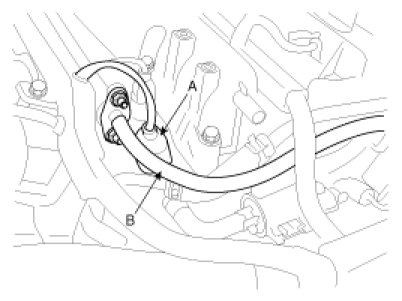

9. Disconnect the brake booster vacuum hose (D).




10. Disconnect the wiring connectors and harness clamps from the engine.

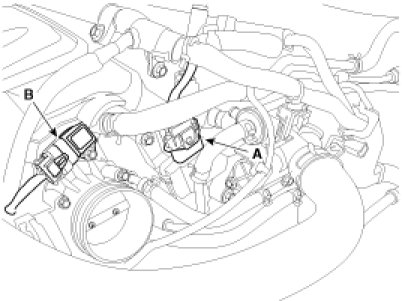

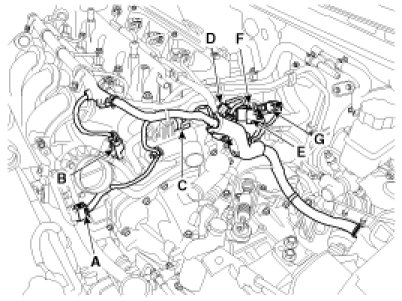

(1) Disconnect the ETC connector (A) and knock sensor connector (B).
(2) Disconnect the PCSV connector (C).
(3) Disconnect the ECT connector (D).
(4) Disconnect the condenser connector (E).
(5) Disconnect the CKP sensor connector (F).
(6) Disconnect the oxygen sensor connector (G).

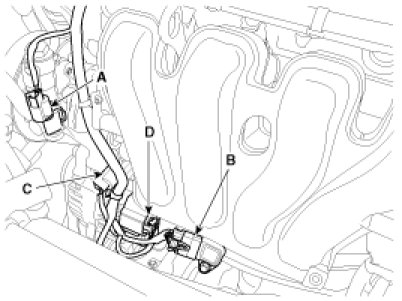

(7) Disconnect the VCM connector (A) and MAP sensor connector (B). (SULEV type only)




(8) Disconnect the power steering fluid pressure switch connector (A).
(9) Disconnect the MAP sensor connector (B).
(10) Disconnect the OPS connector (C).
(11) Disconnect the alternator connector (D) and 'B' terminal cable from the alternator.
(12) Disconnect the A/C switch connector from the compressor.
(13) Disconnect the VIS connector.




(14) Disconnect the intake OCV connector (A).




(15) Disconnect the CMP sensor connector (A) and fuel hose (B).

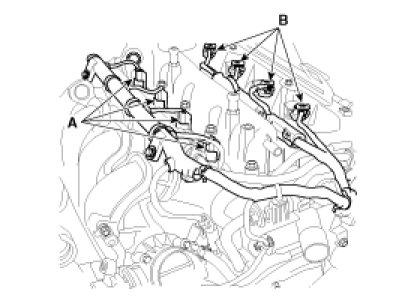

(16) Disconnect the injector connectors (A) and ignition coil connectors (B).




11. Remove timing chain.
12. Remove the intake and exhaust manifold.
13. Remove the water temperature control assembly (A).




14. Remove the intake CVVT assembly (A) and exhaust CVVT sprocket or camshaft sprocket (B).

[Single CVVT]





[Dual CVVT]





NOTE:

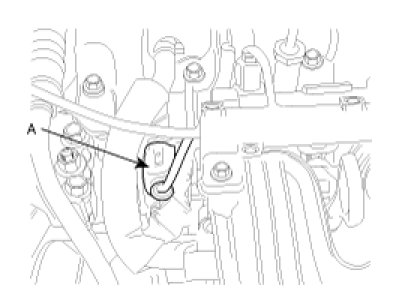

When removing the sprocket bolt or CVVT assembly bolt, fix the camshaft by wrench at position A.




15. Remove the camshaft.

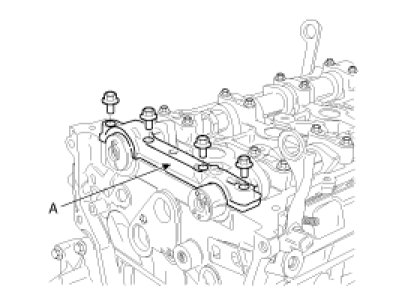

(1) Remove the front camshaft bearing cap (A).




(2) Remove the exhaust camshaft upper bearing (A). (Dual CVVT only)

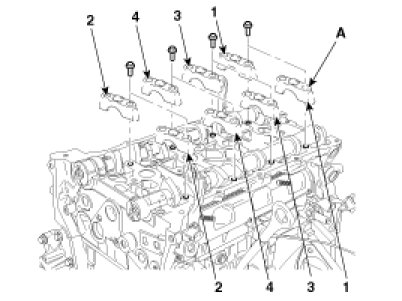

(3) Remove the camshaft bearing cap (A), in the sequence shown.




(4) Remove the camshafts (A).




(5) Remove the exhaust lower bearing (A). (Dual CVVT only)




16. Use a torx wrench, remove the intake OCV (A).




17. Remove the exhaust OCV (A). (Dual CVVT only)
18. Remove the cylinder head bolts, then remove the cylinder head.

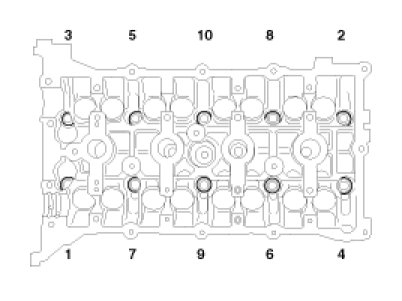

(1) Using triple square wrench, uniformly loosen and remove the 10 cylinder head bolts, in several passes, in the sequence shown. Remove the 10 cylinder head bolts and plate washers.





CAUTION:
Head warpage or cracking could result from removing bolts in an incorrect order.

(2) Lift the cylinder head from the dowels on the cylinder block and place the cylinder head on wooden blocks on a bench.

CAUTION:
Be careful not to damage the contact surfaces of the cylinder head and cylinder block.

19. Remove the cylinder head gasket.
