Indicators & Gauges (Super Vision)

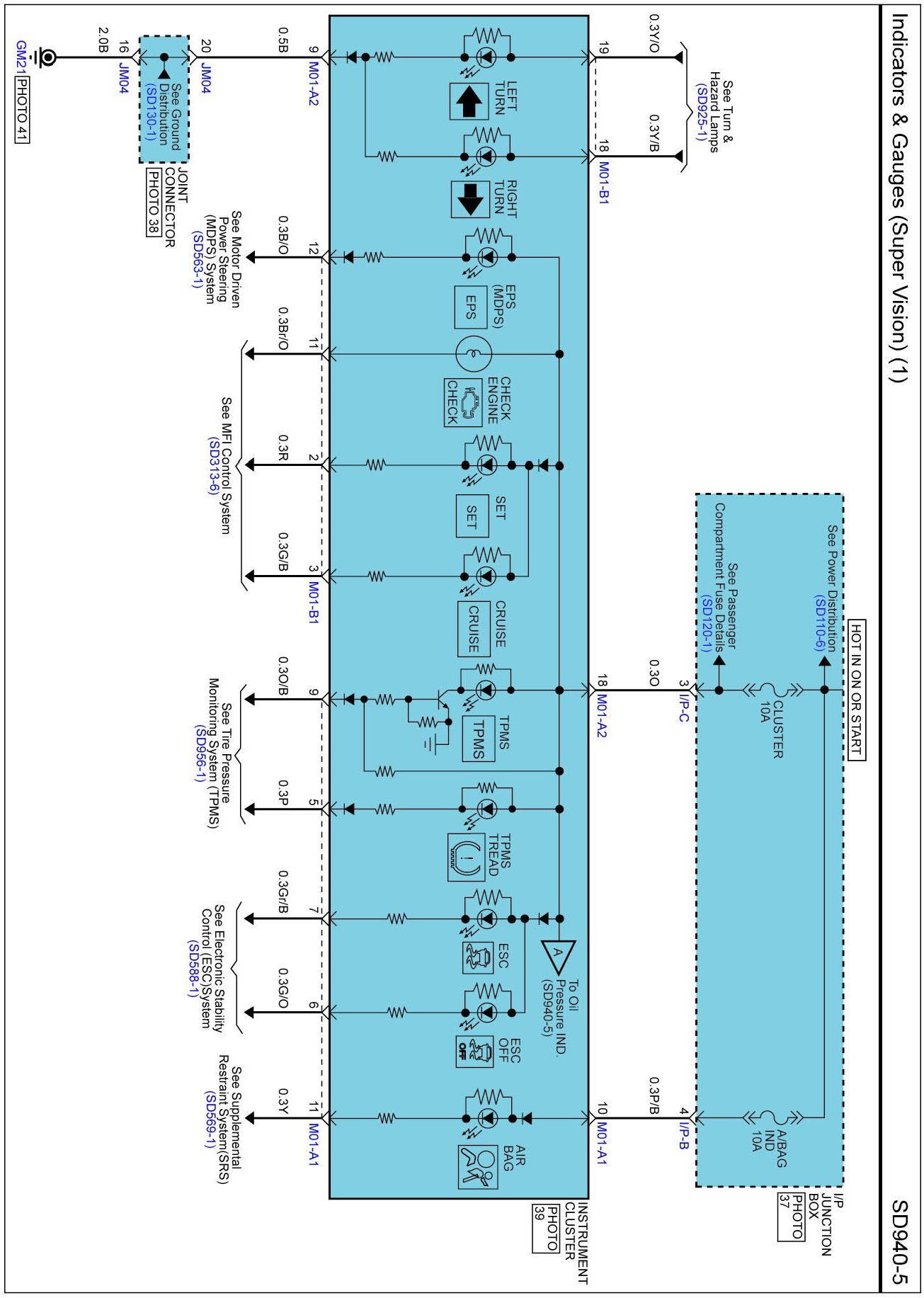

SD940-5 Indicators And Gauges (Super Vision) (1):

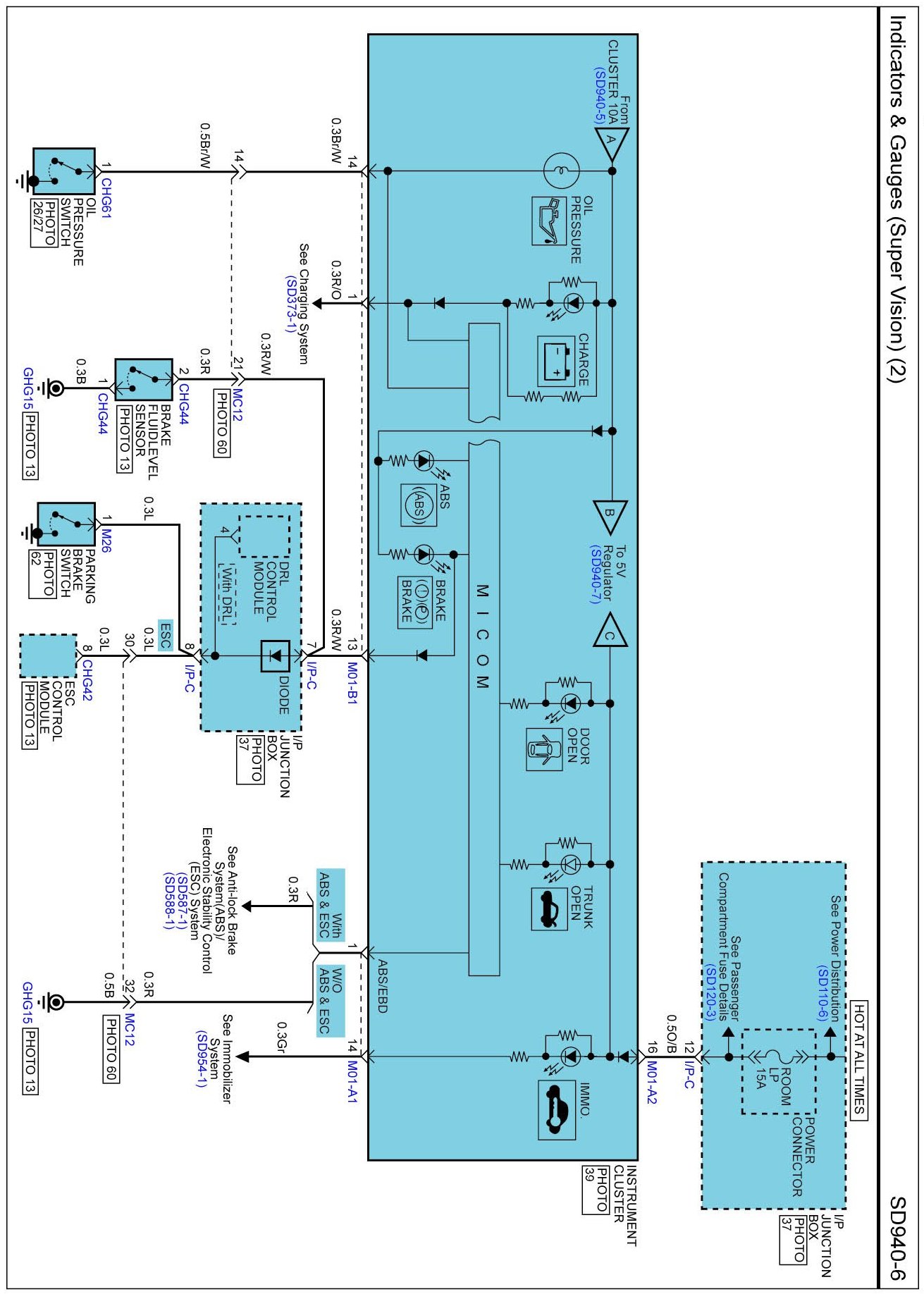

SD940-6 Indicators And Gauges (Super Vision) (2):

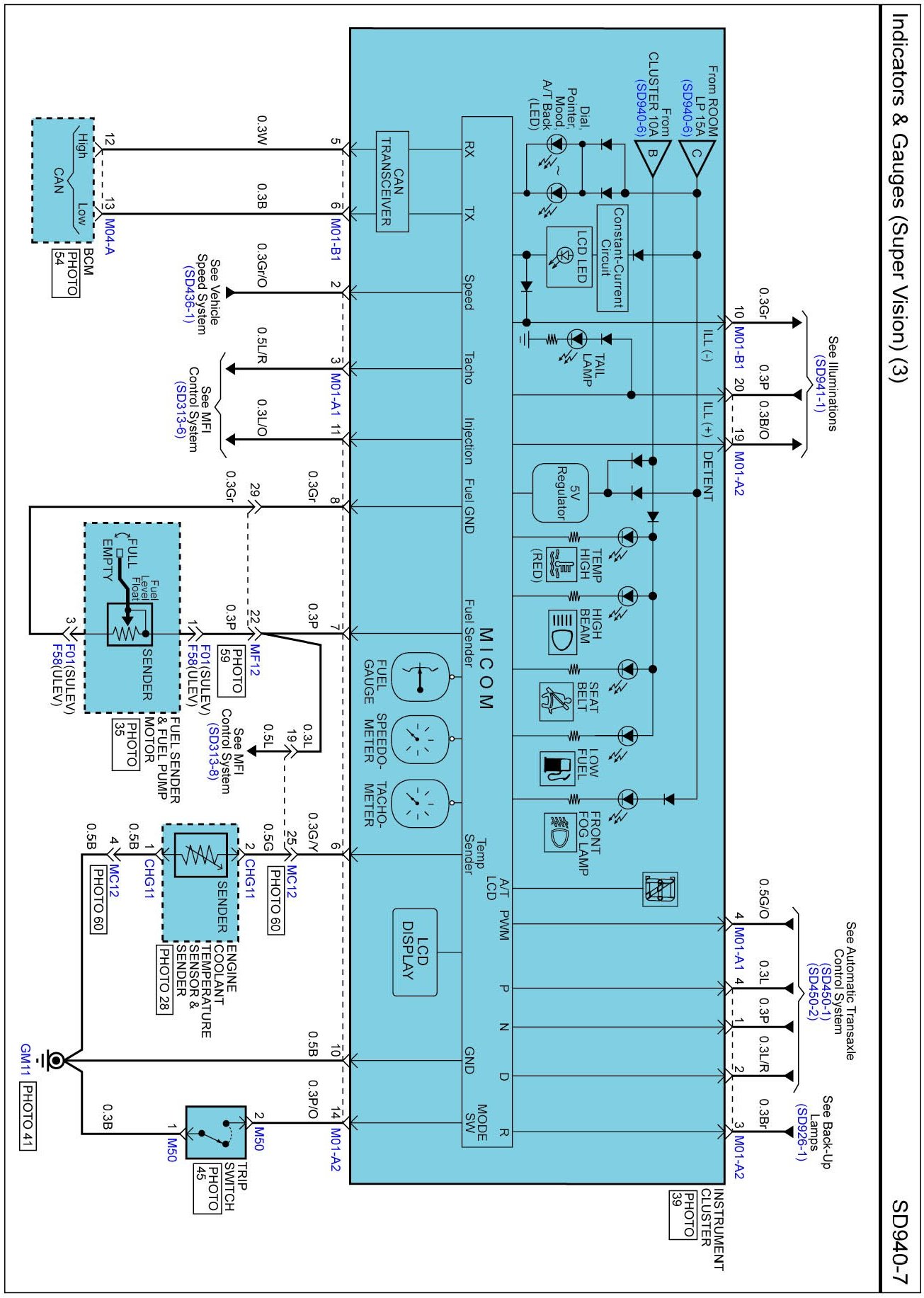

SD940-7 Indicators And Gauges (Super Vision) (3):

SD940-8 Indicators And Gauges (Super Vision) (4):

Diagrams: Other diagrams referred to by SD number (i.e. SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.
