Home >> Kia >> 2010 >> Forte L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD861 (Front Wiper Deicer)

Diagram Set SD861 (Front Wiper Deicer)

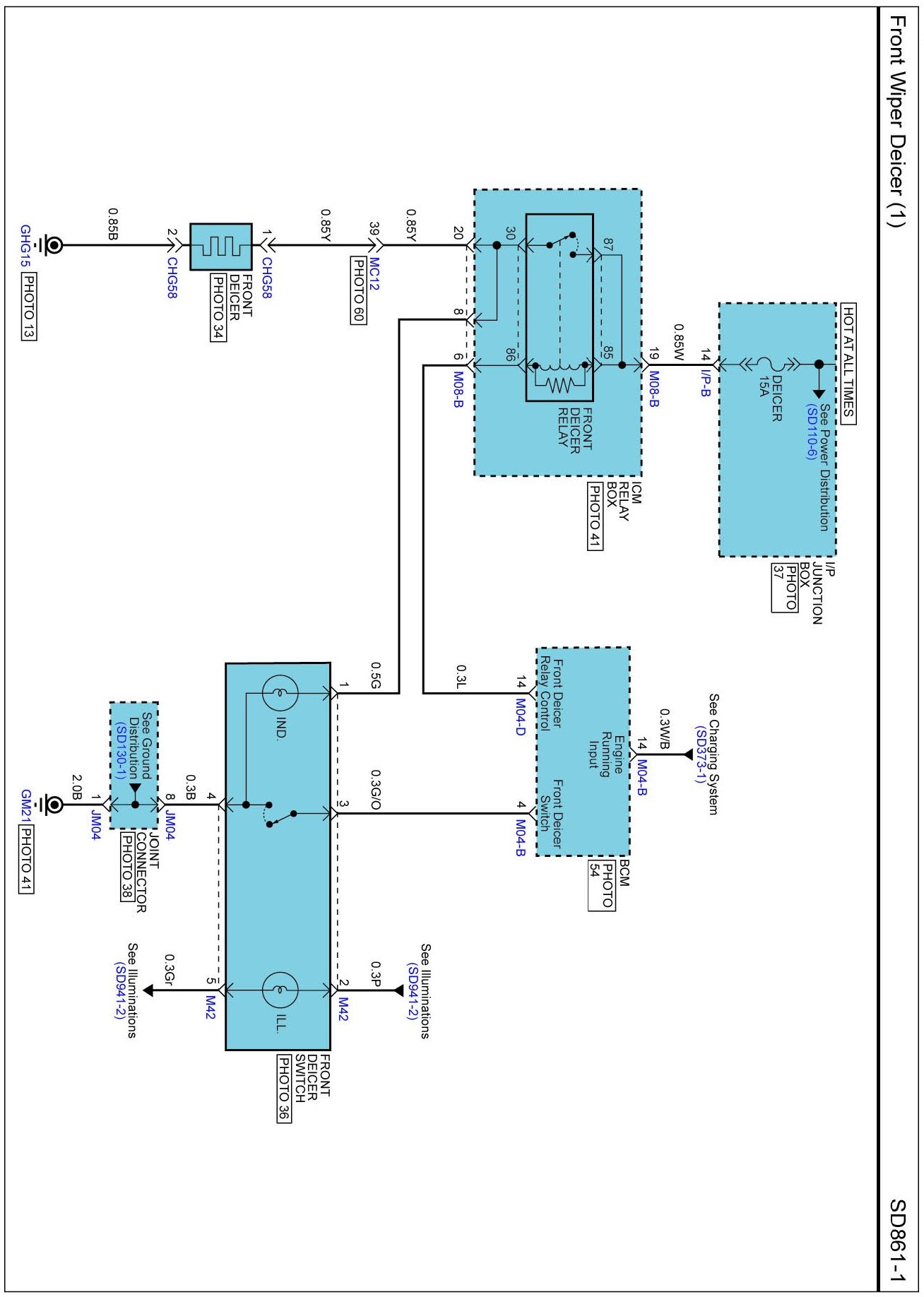

SD861-1 Front Wiper Diecer (1):
