Diagram Set SD824 (Power Windows)

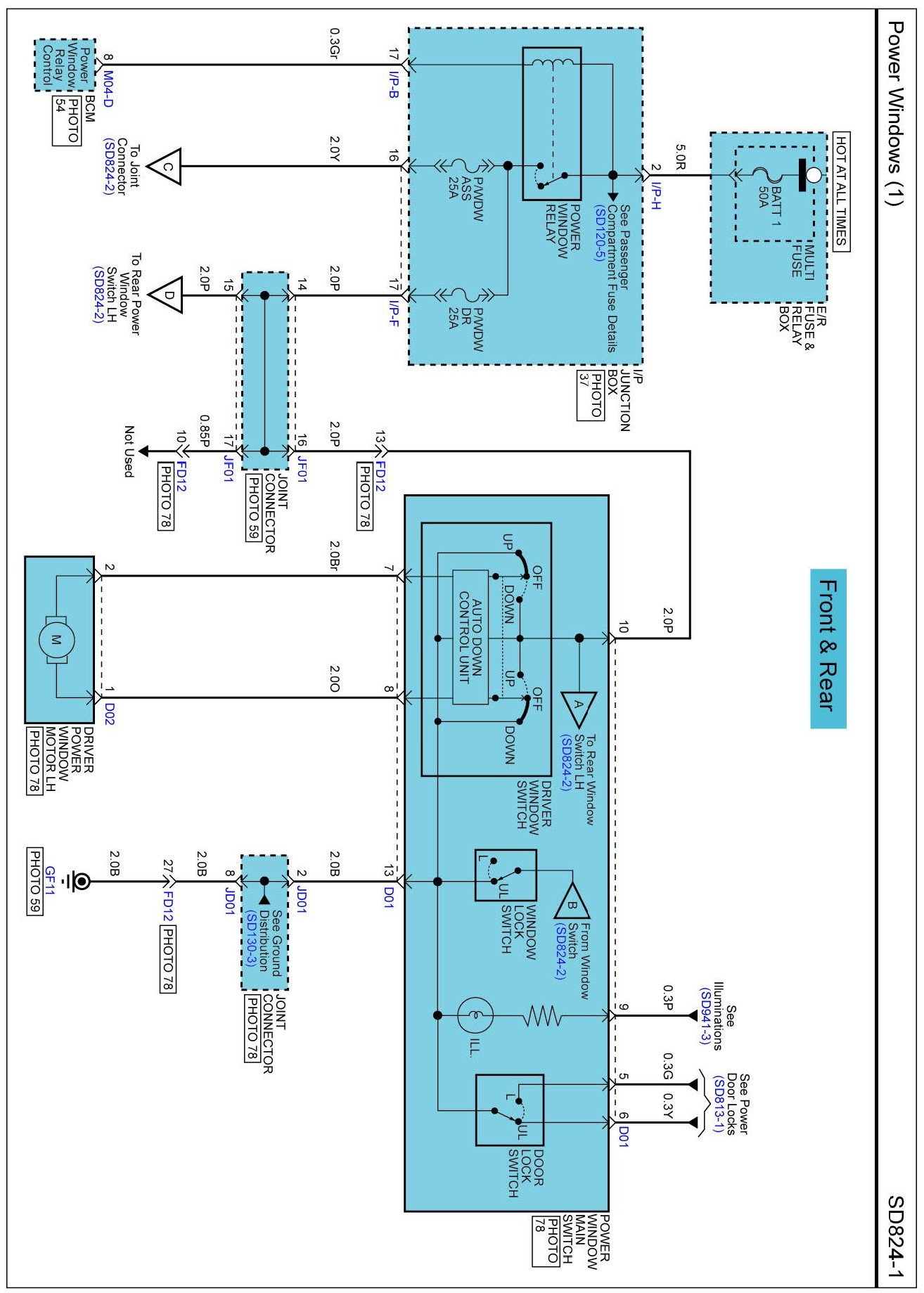

SD824-1 Power Windows (1):

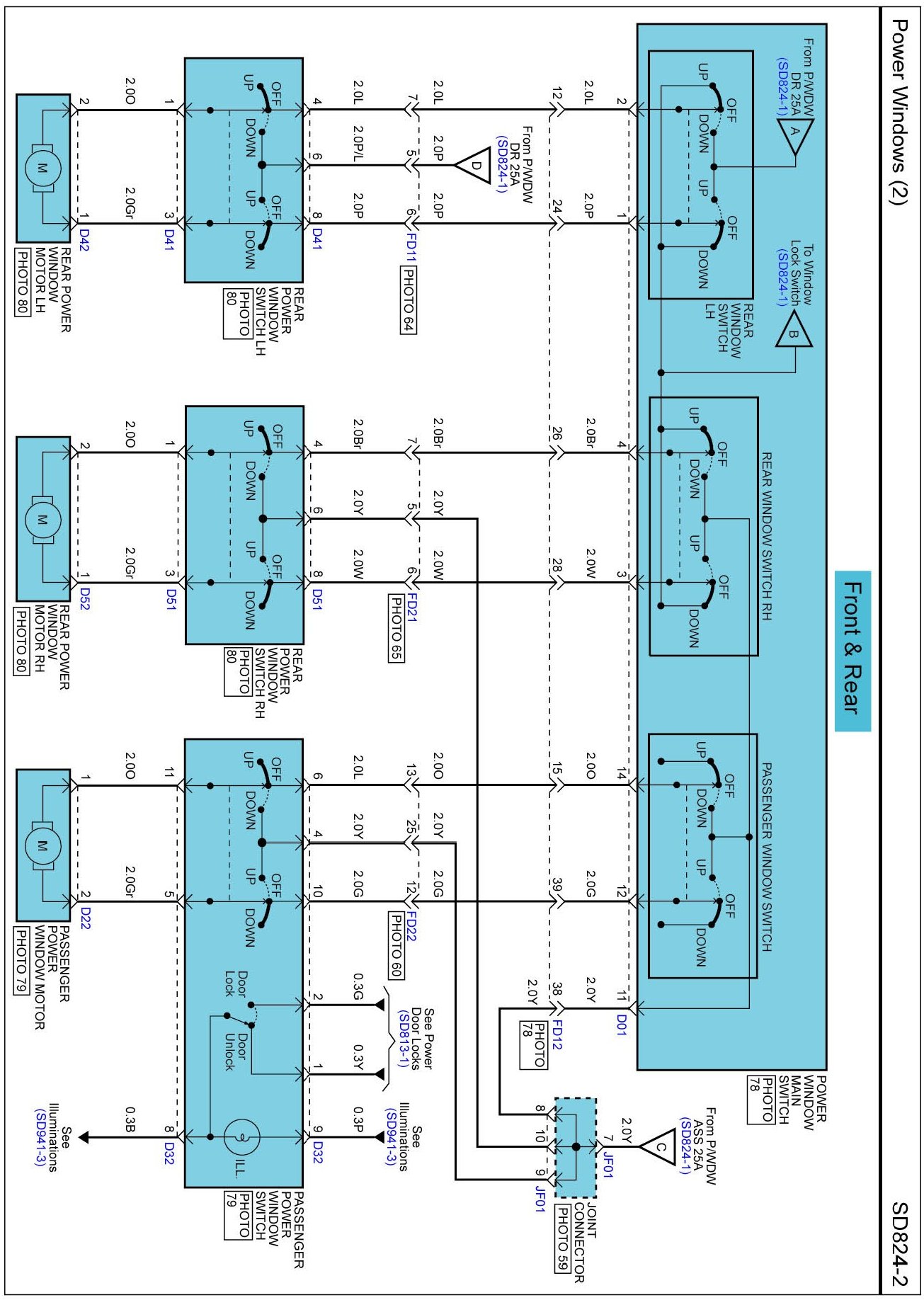

SD824-3 Power Windows (2):

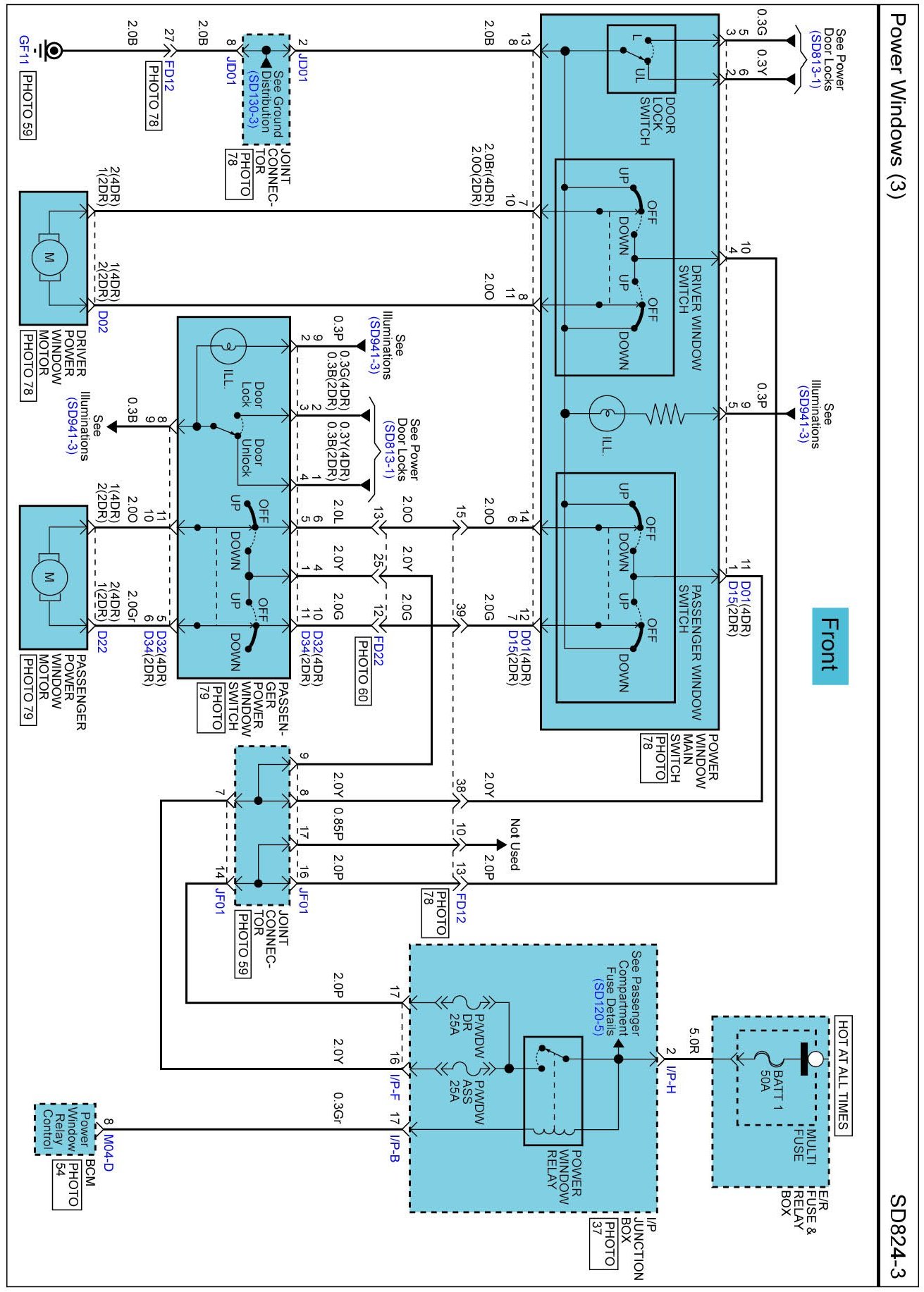

SD824-3 Power Windows (3):
