Repair Procedures





Removal

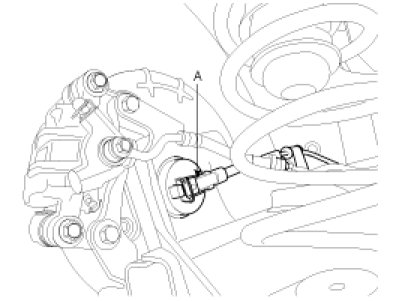

1. Remove the connector after(A) removing the rear wheel speed sensor clip.




2. Remove the rear wheel speed sensor.
3. Installation is the reverse of removal.
