Repair Procedures

Removal

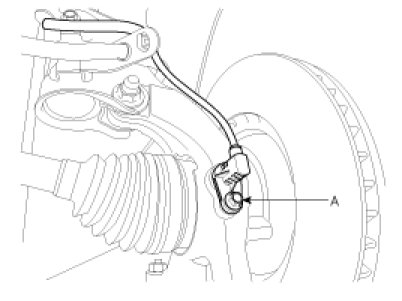

1. Remove the front wheel speed sensor mounting bolt (A).

Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)





2. Remove the front wheel guard.
3. Disconnect the front wheel speed sensor connector. And remove the front wheel speed sensor.
4. Installation is the reverse of removal.
