Repair Procedures

Removal

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

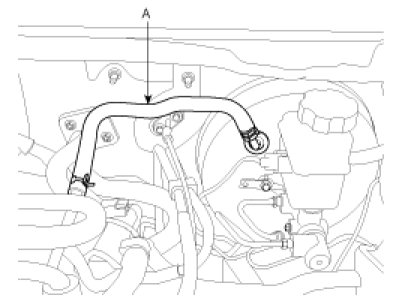

2. Disconnect the vacuum hose (A) from the brake booster.




3. Remove the master cylinder.

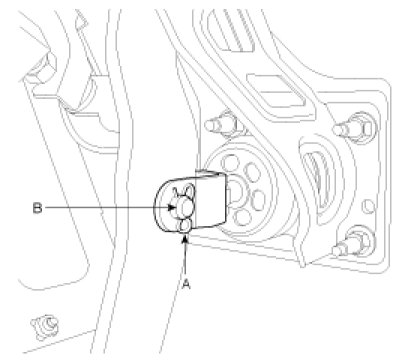

4. Remove the snap pin (A) and clevis pin (B).

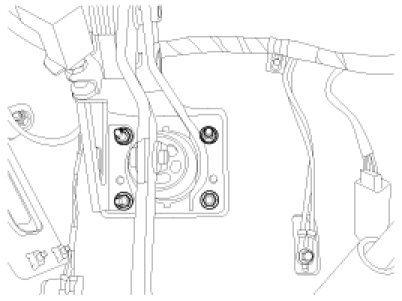

5. Remove the mounting nuts.

Tightening torque :
12.7 - 15.7N.m (1.3 - 1.6kgf.m, 9.4 - 11.6lb-ft)

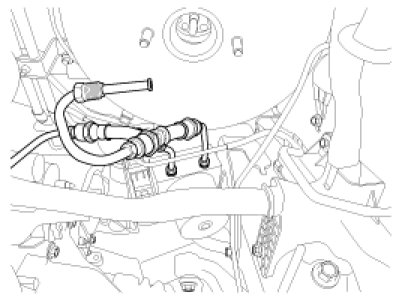

6. Remove the brake booster after disconnecting the brake tubes(2EA) from the HECU.






Installation

1. Installation is the reverse of removal.

CAUTION:
- Before installing the pin, apply the grease to the joint pin.
- Use a new snap pin whenever installing.

2. After installing, bleed the brake system.
3. Adjust the brake pedal height and free play.
