Communication With Scan-Tool Is Not Possible (Communication With Any System Is Not Possible)

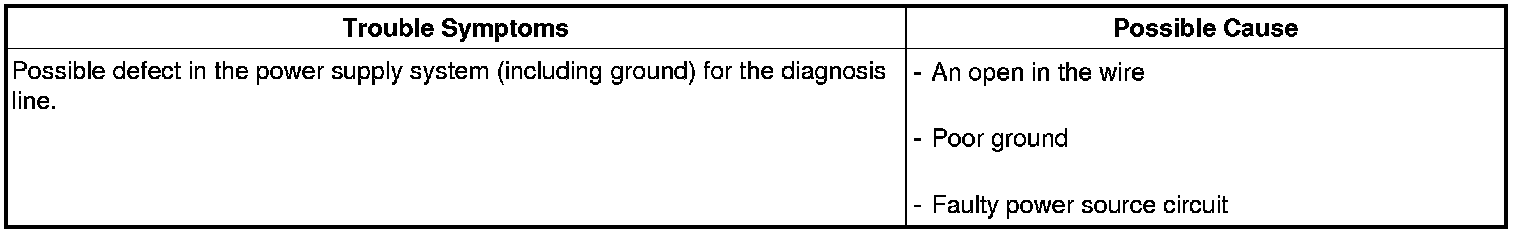

Detecting condition






Inspection procedures
Check The Power Supply Circuit For The Diagnosis

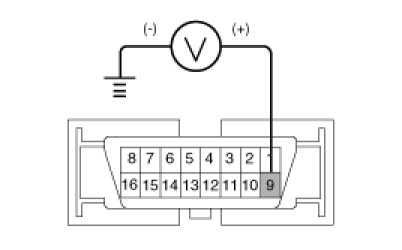

1. Measure the voltage between terminal 9 of the data link connector and body ground.

Specification :approximately B+


2. Is voltage within specification?










Check the ground circuit for the diagnosis

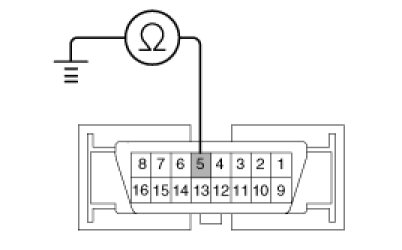

1. Check for continuity between terminal 5 of the data link connector and body ground.
2. Is there continuity?
