Home >> Kia >> 2010 >> Forte L4-2.4L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> ESC (Electronic Stability Control) System

ESC (Electronic Stability Control) System

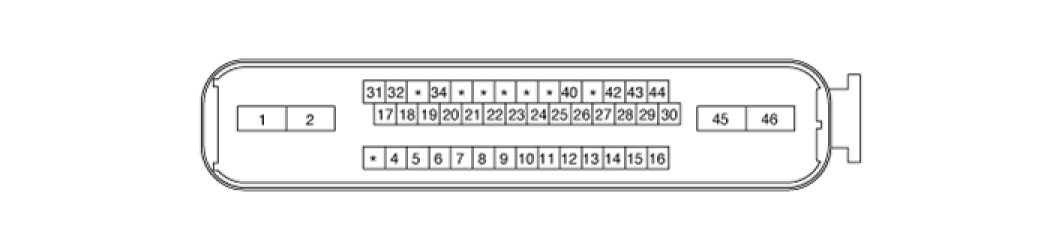

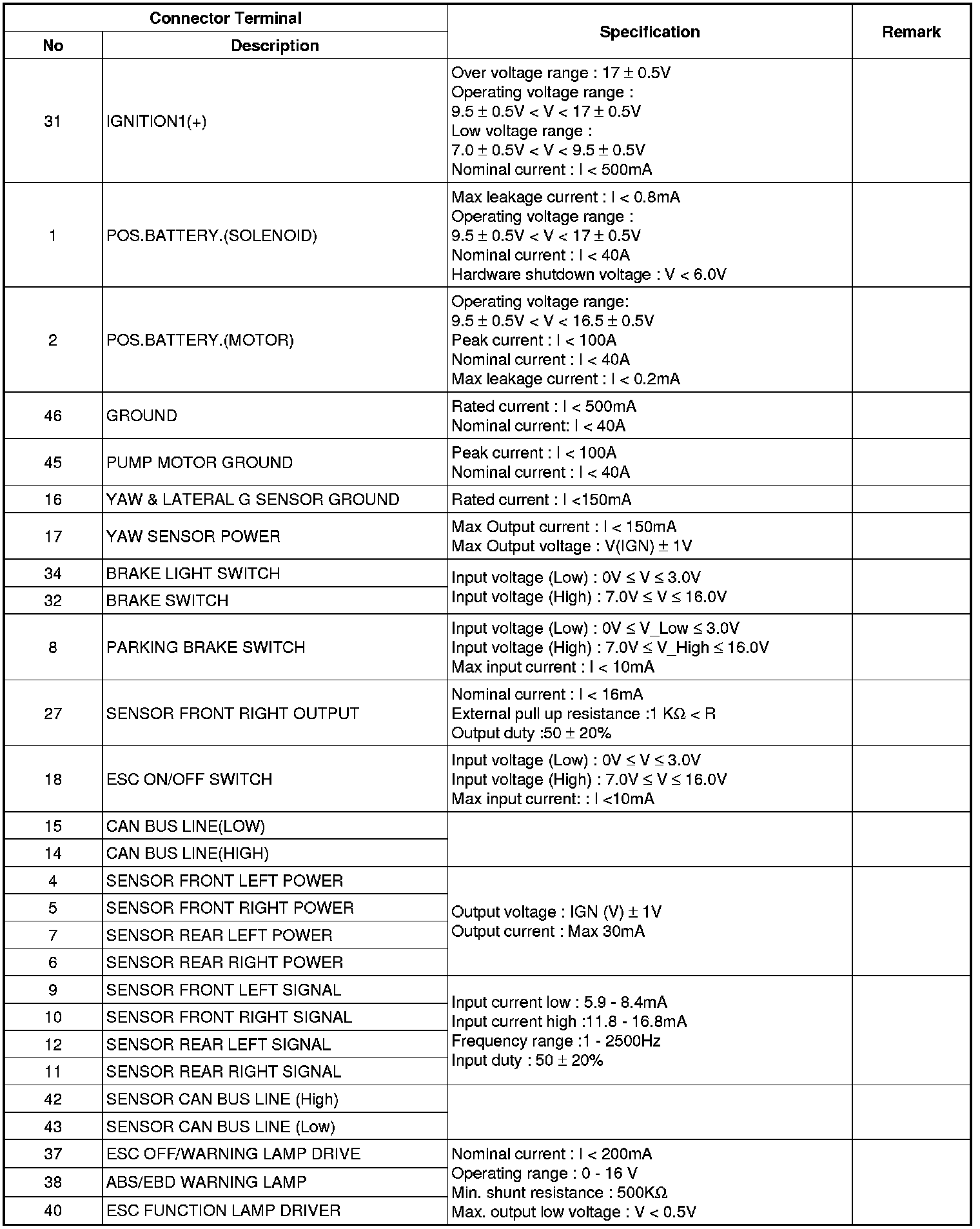

ESC Connector Input/Output
