Seat Assembly Replacement

Replacement

Seat Assembly Replacement
1. After loosening the seat assembly mounting bolts, remove the seat assembly (A).

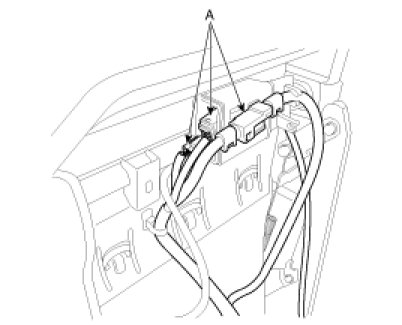

2. Disconnect the connectors (A).

Driver`s





Passenger`s




3. Installation is the reverse of removal.

CAUTION:
SEAT MOUNTING BOLT INSTALLATION PROCEDURE (manual seat only)
- Set the into the most rearward position. check then each slide is locked, and then tighten the front mounting bolt temporarily.
- Set the seat into most forward position. check that each slide is locked, and then tighten the rear mounting bolt completely.
- Set the seat into the most rearward position. check the front mounting bolt completely.
- Check that the seat operates to and fro smoothly and the locking portion locks properly.
