Seat Back Heater Replacement

Seat Back Heater Replacement
1. Remove the seat back cover.

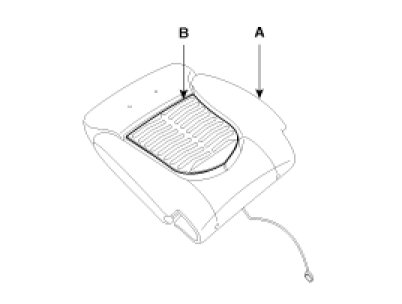

2. Cut the heater (B) attached to the pad (A), as shown in the picture.

CAUTION:
- Take care not to damage the slave sponge.




3. Install the seat back cover.
A. Detach the paper from the back of the heater assembly.
B. Attach the heater to the main part of the sponge.

CAUTION:
- Be sure to match the heater with main appearance.
