Coupe

Seat Cushion Cover Replacement
1. Remove front seat assembly.

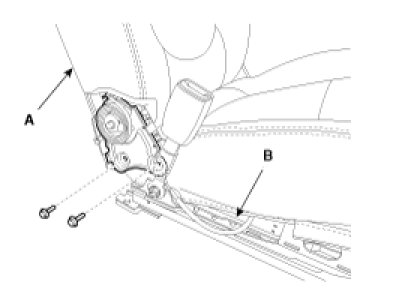

2. Remove the recliner cover.

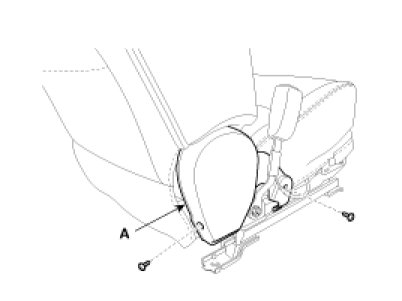

3. Remove the recliner cover (A).

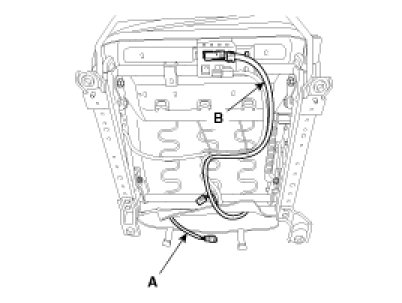

4. Disconnect the connector (A) and (B).




5. After disconnect the protector (A), then remove the seat cushion (B).

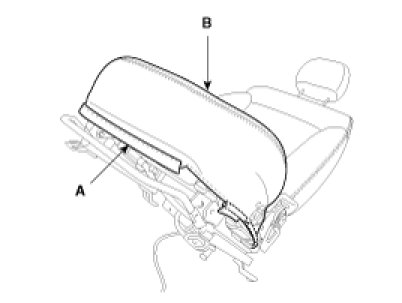

6. After loosening the mounting bolts, then disconnect the seat back (A) and seat cushion (B).

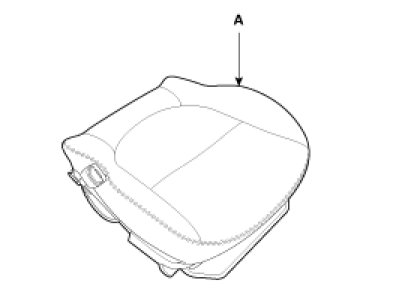

7. After removing the hog ring clips on the front of seat cushion and remove the seat cushion cover (A).




8. Installation is the reverse of removal.
