Coupe

Recliner Cover Replacement

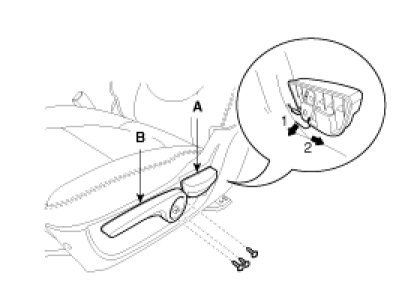

1. Remove the height adjuster knob (B) and recliner knob (A).

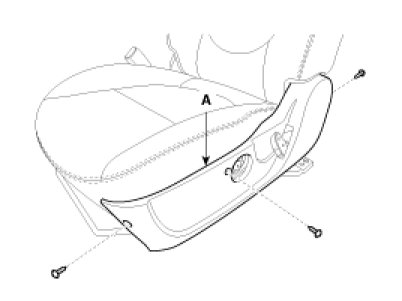

2. Loosen the recliner mounting screw and clip, remove the recliner cover (A).




3. Installation is the reverse of removal.
