Sedan

Seat Back Cover Replacement
1. Remove front seat assembly.
2. Remove the headrest.
3. Disconnect the connector (A) and (B).

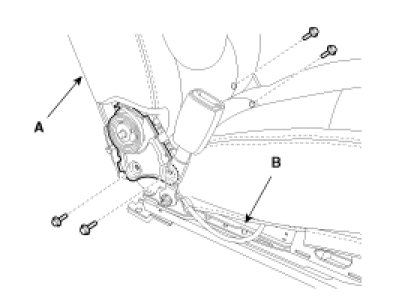

4. After loosening the mounting bolts, then disconnect the seat back (A) and seat cushion (B).

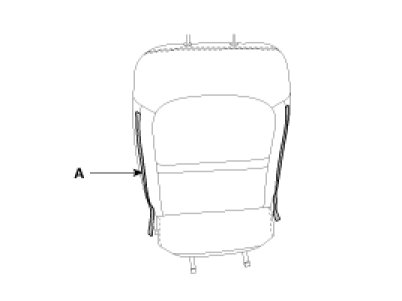

5. Disconnect the seat back cover (A).

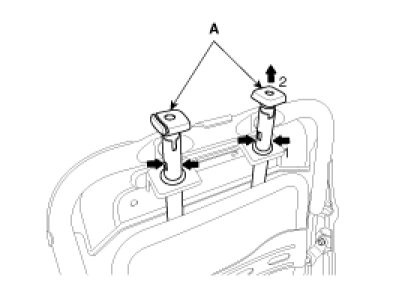

6. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

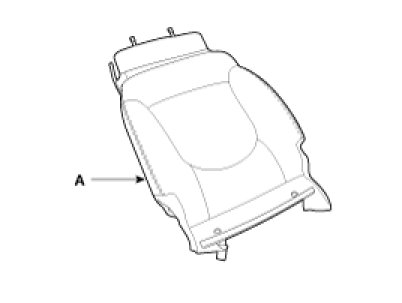

7. After removing the hog ring clip on the front of seat back cushion and remove the seat back cover (A).




8. Installation is the reverse of removal.
