Campaign SA030 - Sunroof Noise Repair
GROUP BodyNUMBER 057
MODEL 2010 forte Koup [TD]
DATE February 2010
SUBJECT:
SERVICE ACTION: FORTE KOUP [TD] SUNROOF NOISE REPAIR (SA030)

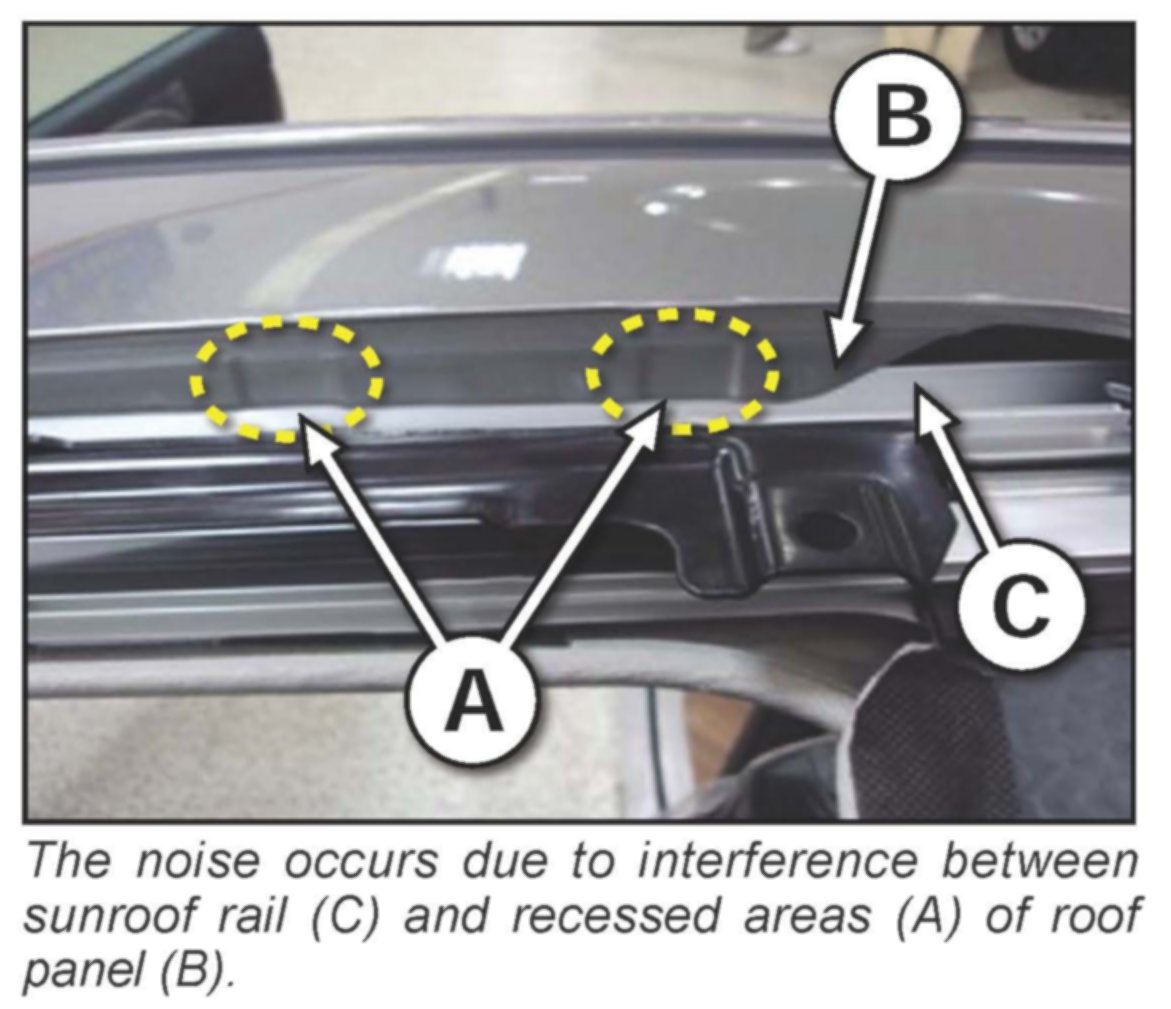

This bulletin provides information relating to some Forte Koup (TD) vehicles built from June 5, 2009 to December 8, 2009 that may have abnormal noise from the sunroof due to interference between sunroof rail and roof panel while driving on uneven roads or when cornering.
To improve customer satisfaction, Kia is requesting the completion of this Service Action on all affected 2010 Forte Koup (TD) vehicles in dealer stock.
NOTICE
A Service Action is a repair program without customer notification that is performed during the warranty period. Any dealer request to perform this repair outside the warranty period will require DPSM approval. Repair status for a VIN is provided on WebDCS (Service>Warranty Coverage> Warranty Coverage Inquiry>Campaign Information). Not Completed Recall/Service Action reports are available on WebDCS (Consumer Affairs>Not Completed Recall Recall VIN>Select Report).
The issue number is SA030.
Repair Procedure

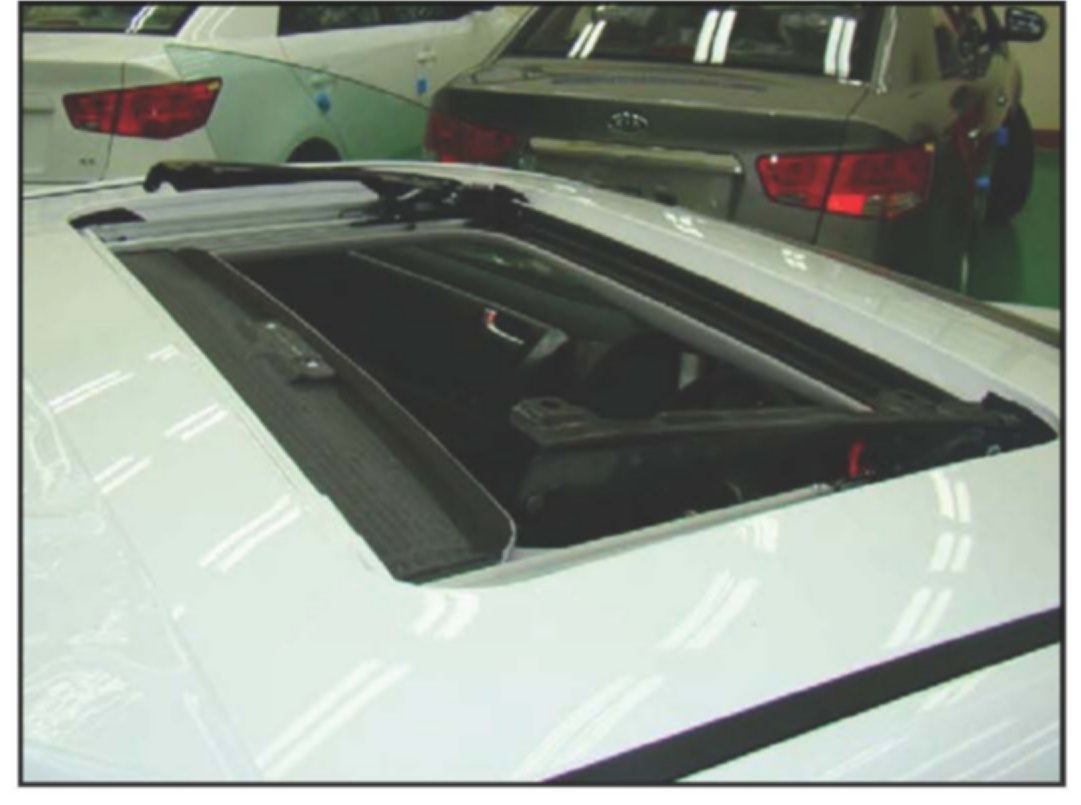

1. First tilt up the sunroof glass, and then remove the six (6) sunroof glass mounting nuts, then carefully remove sunroof glass from the sunroof assembly and store in a safe location until reassembly.
2. Tilt down the sunroof guide with the sunroof switch.

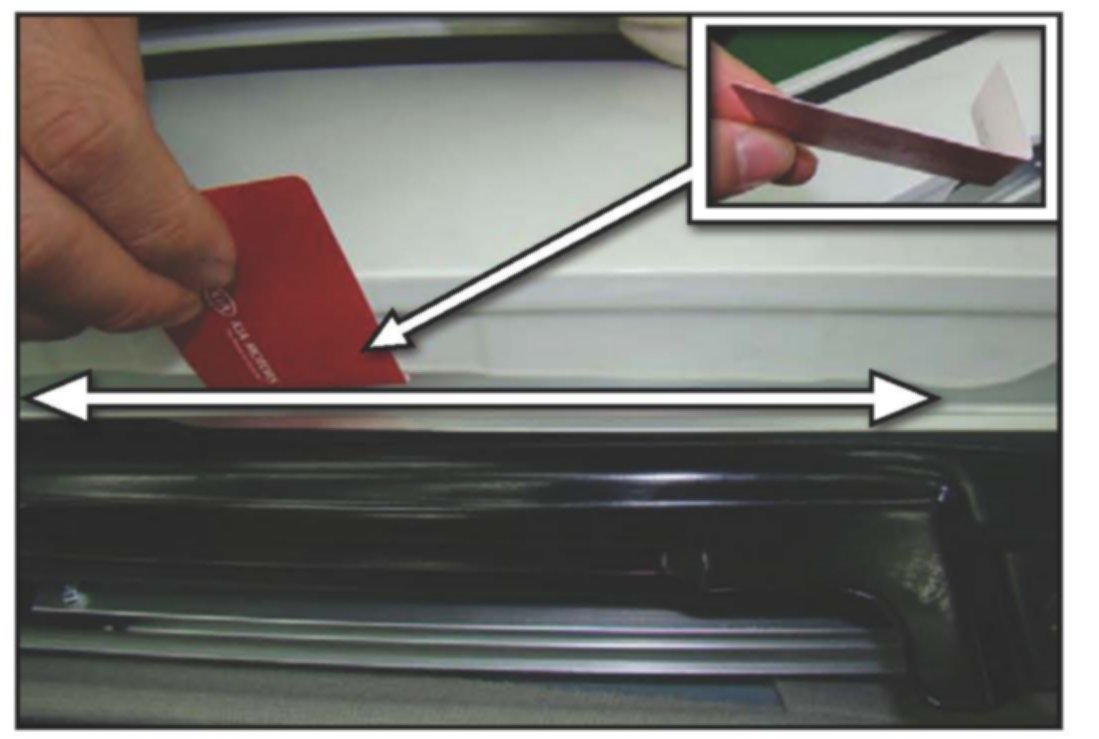

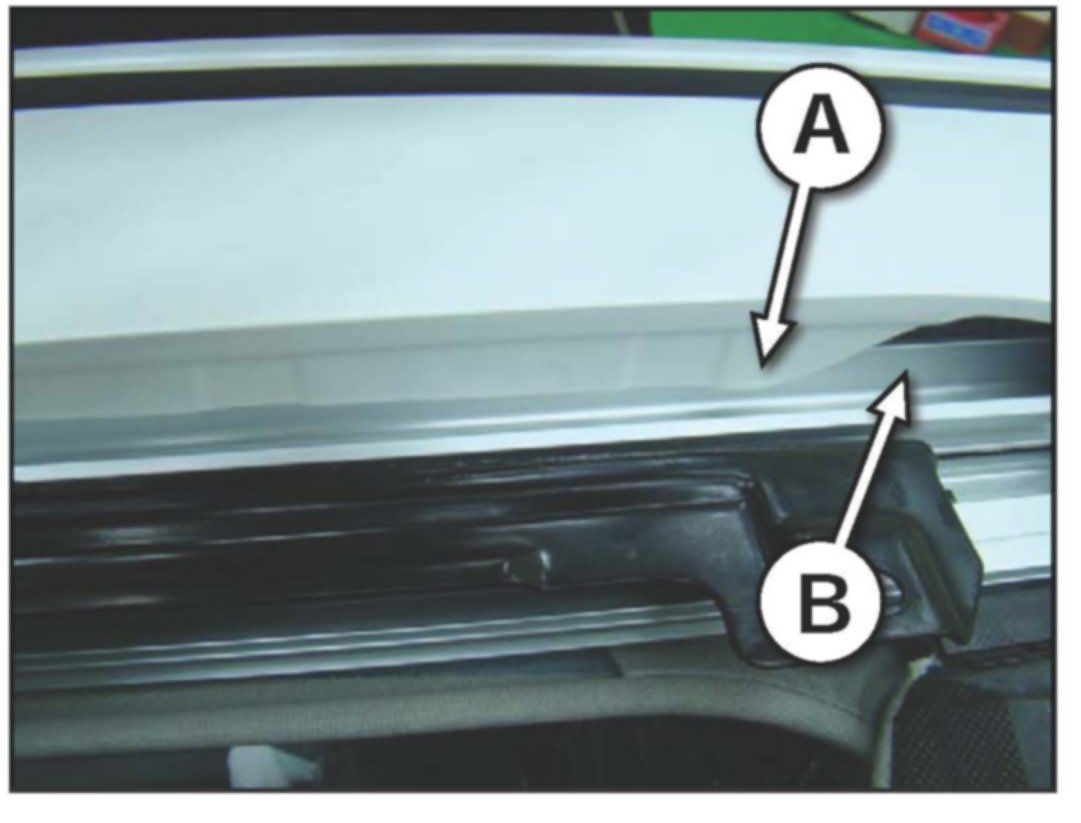

3. Fold a standard business card to approximately 0.6-0.8 in. (1.5-2 cm) as shown in the photo, and then insert the folded area between the roof panel (A) and sunroof rail (B). Slowly slide the business card along the gap to check whether it passes smoothly or with excessive resistance.
Repeat this procedure on the opposite side.
4. If the business card passes smoothly, no further action will be required. If the card moves with excessive resistance; carefully adjust the gap between the sunroof rail (B) and the roof panel (A) by following the next steps.

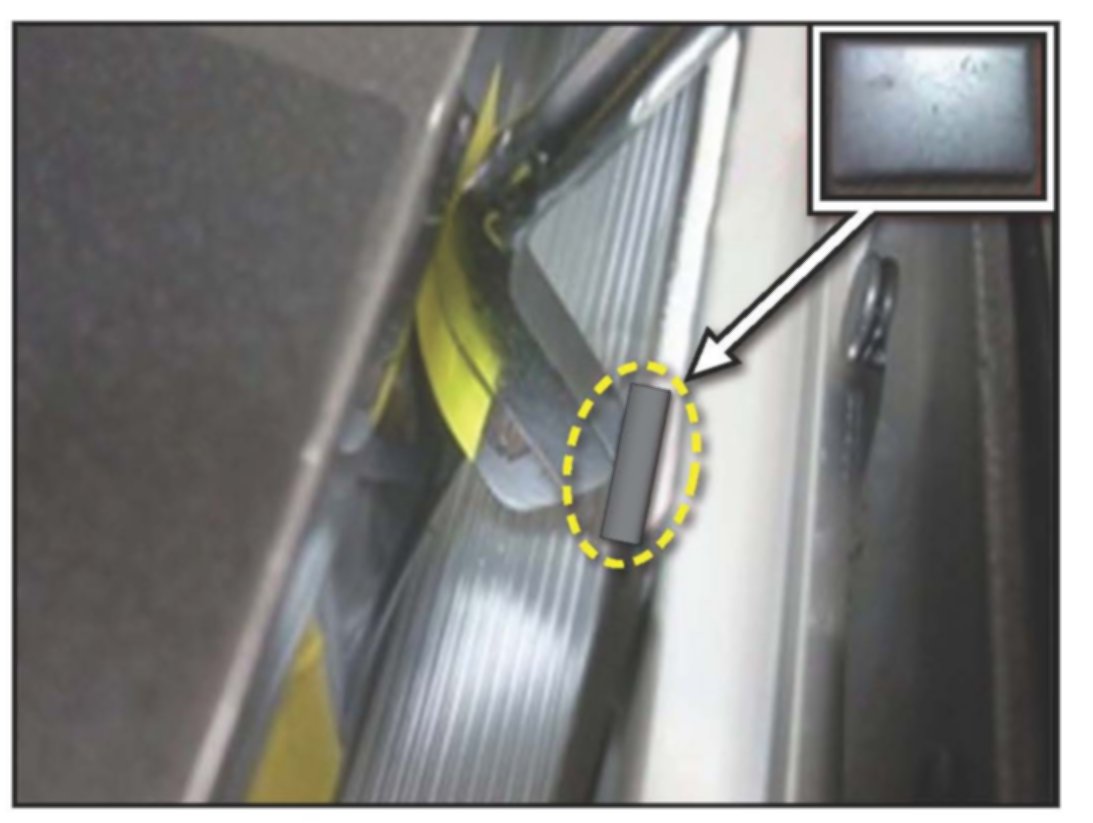

5. In order to properly protect the roof panel paint during repair, attach tape or stickers (D) on the appropriate areas of the roof panel, and to protect the sunroof rail, lean the supplied metal pad (E) against the sunroof rail.
NOTICE

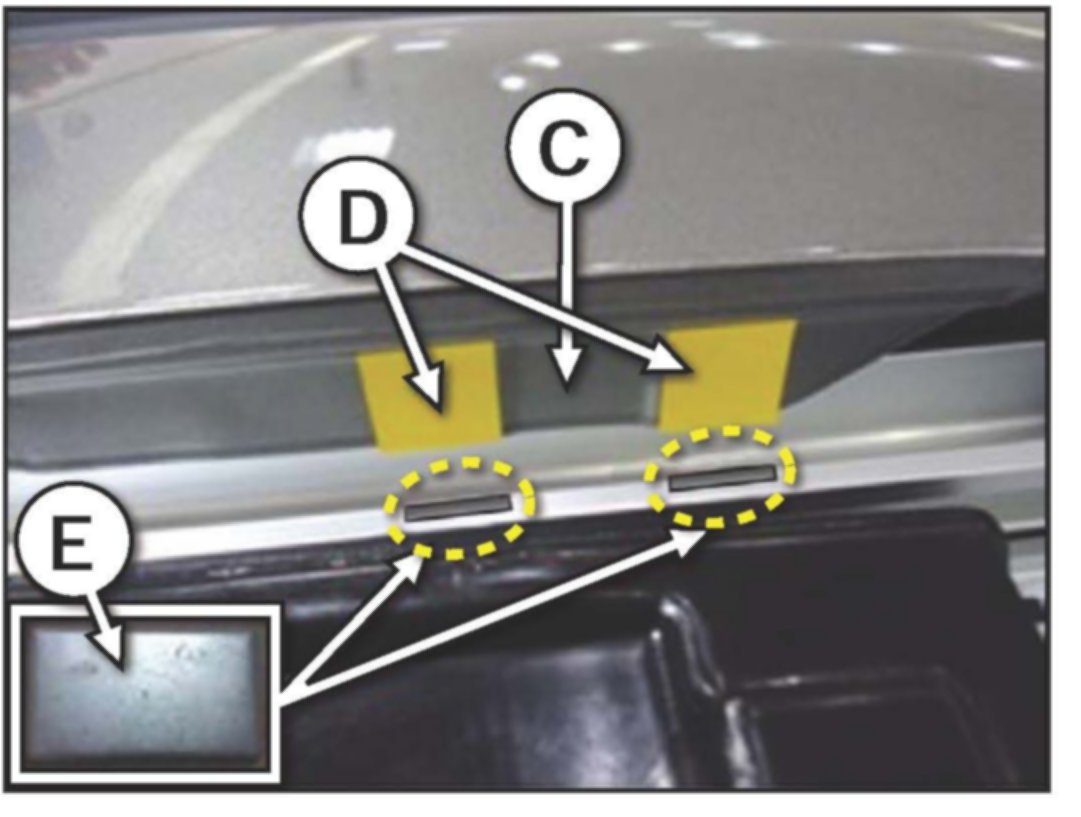

Attach tape or stickers to both sides of the recessed area (C) of the roof panel as shown in the photo.

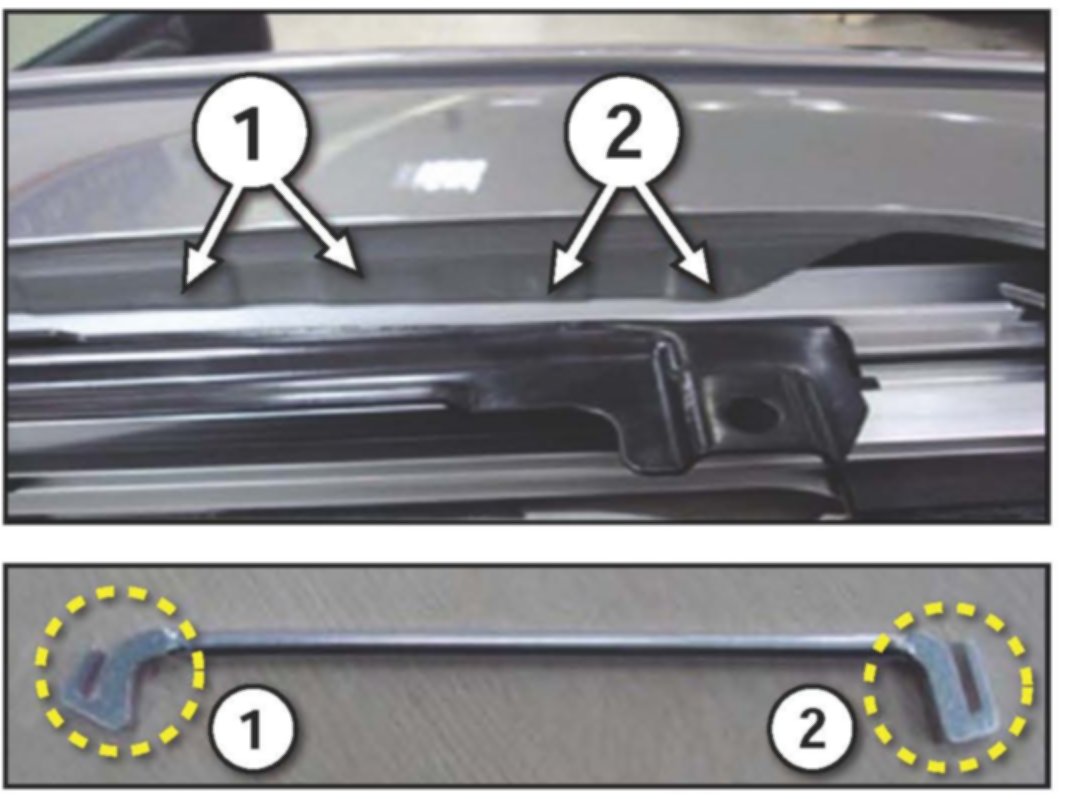

Shorter pivot bar head is used to adjust the front recessed area (1).
Longer pivot bar head is used to adjust rear recessed area (2).
CAUTION

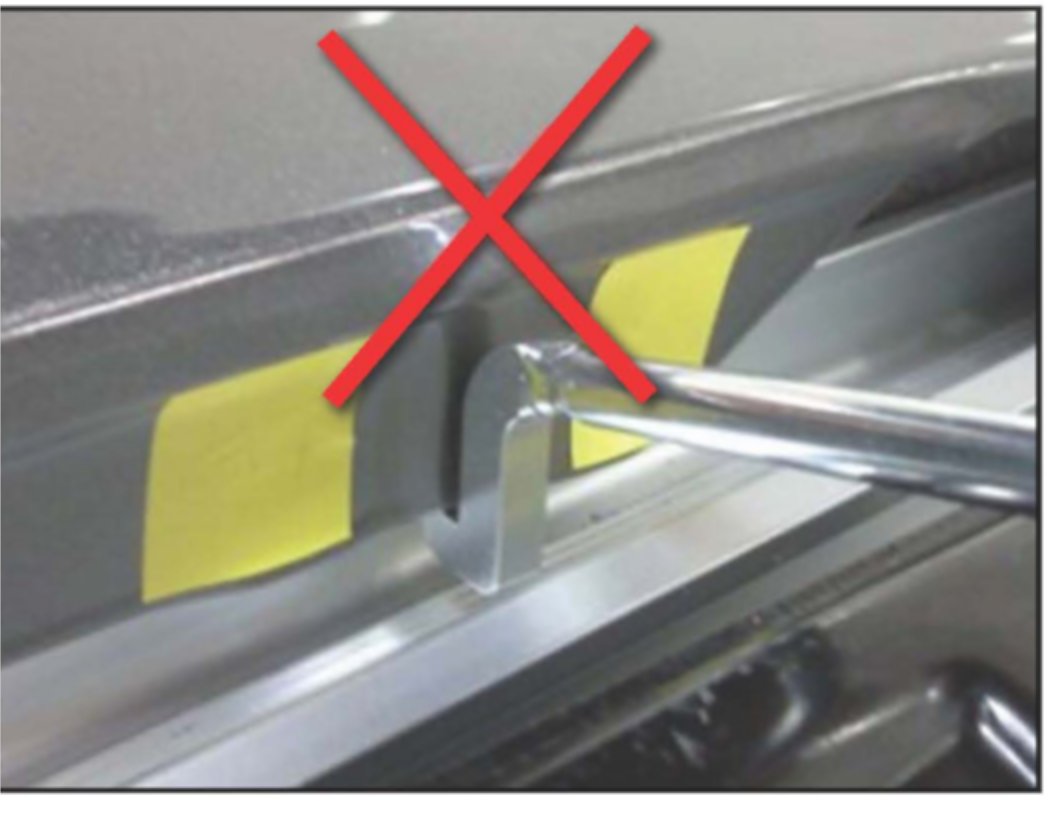

Do not use the pivot bar tool on bare roof panel. Always use a piece of tape or appropriate protective sticker.

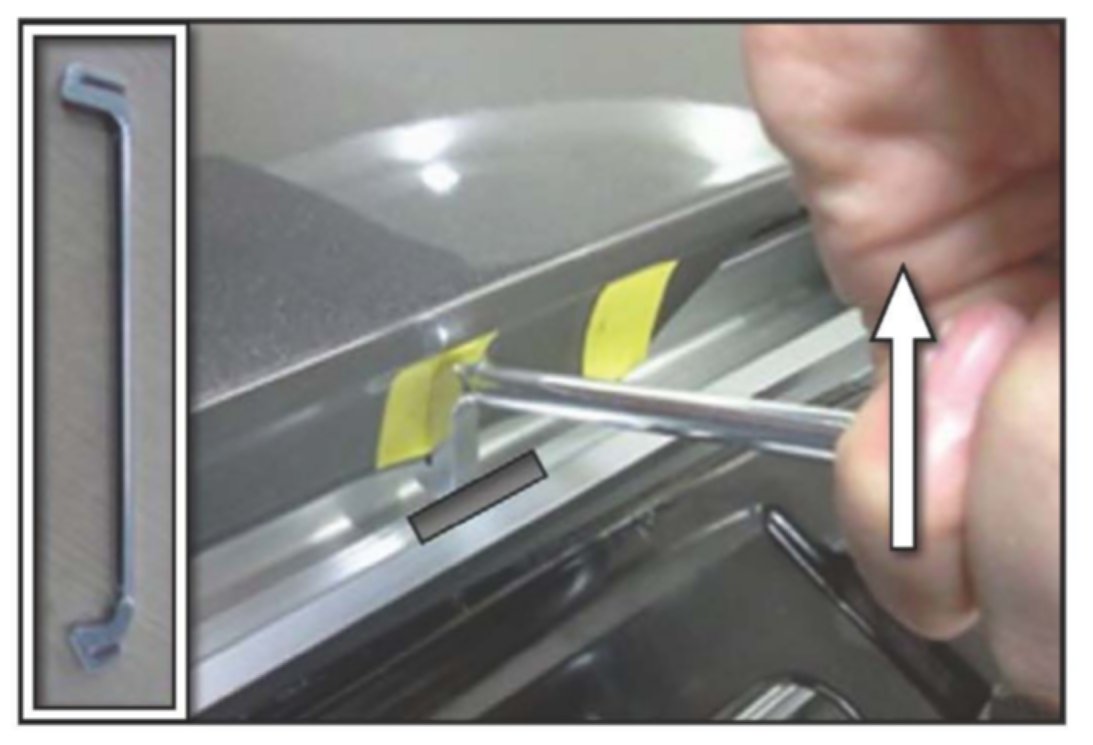

6. Fit applicable end of the pivot bar head onto the roof panel as shown in the photo. Slowly move the pivot bar upward until the pivot bar tool head makes contact with the metal pad as shown in the photos.
7. After adjusting panel, recheck the interference with the business card as performed in step 3.
8. Reinstall the sunroof glass in reverse order of removal, and adjust as needed. Then check the clearance between the roof panel and sunroof glass to make sure fit is correct.

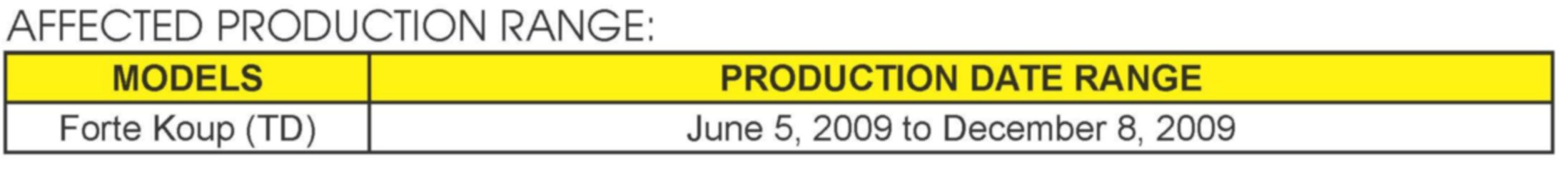

AFFECTED PRODUCTION RANGE

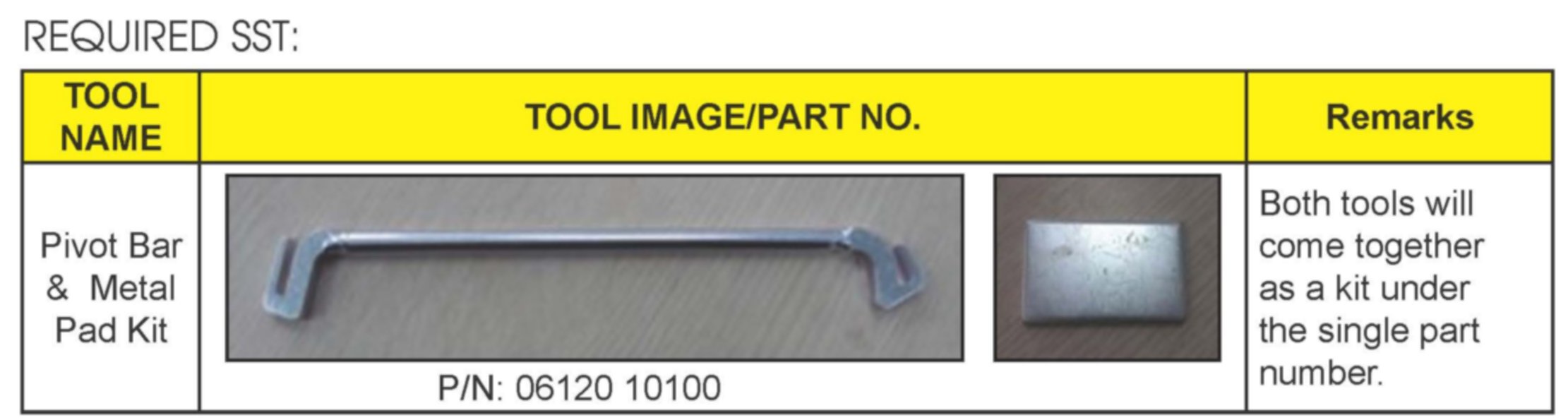

REQUIRED SST

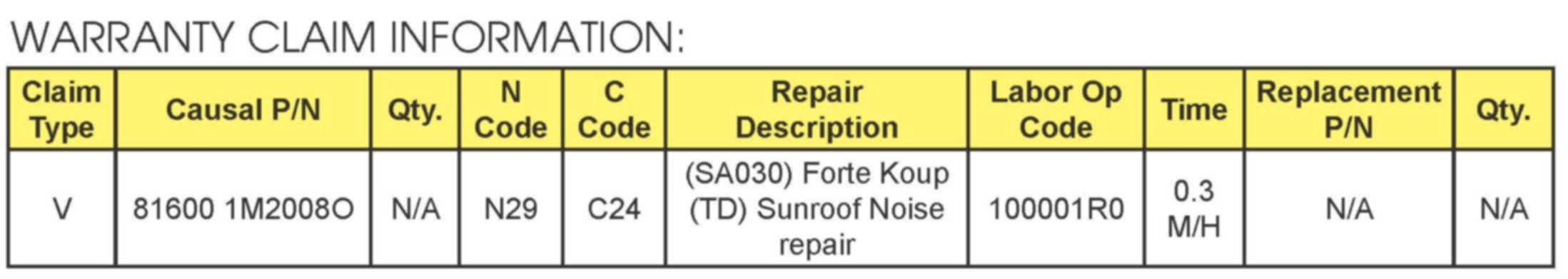

WARRANTY CLAIM INFORMATION
NOTICE
VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference SA030 when accessing the WebDSC system.
