Sedan

Guide Assembly Replacement
1. Remove the sunroof assembly.

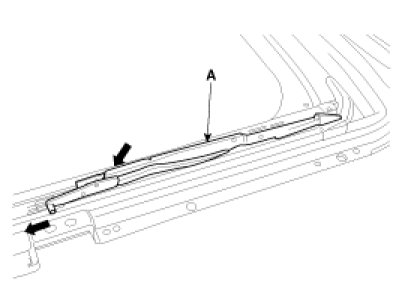

2. Lower and slide the guide assembly (A) to the rear to remove.

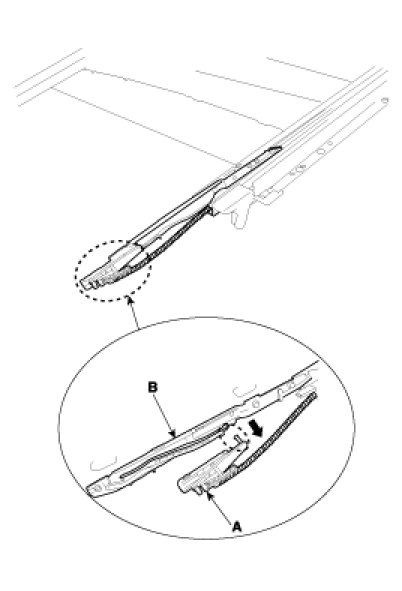

3. Remove the guide (A) and slide (B).




4. Installation is the reverse of removal.

NOTE:

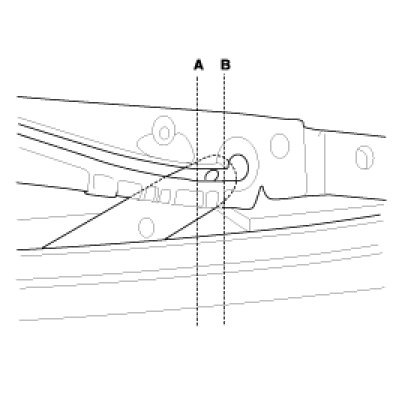

- Make sure to align the slide with the center of"A" and "B"
- Make sure to initialize the motor.
