Coupe

Replacement

Outside Rear View Mirror Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

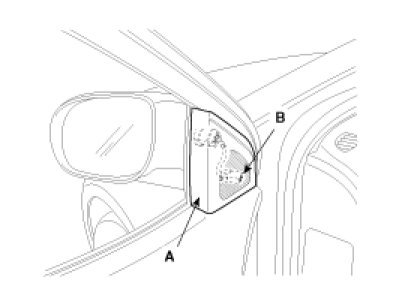

1. Remove the quadrant inner cover (A).
2. Disconnect connector (B).

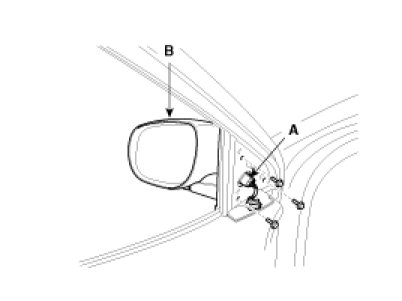

3. After disconnecting the connector (A), remove the outside rear view mirror (B).

Tightening torque :
6.9 - 10.8N.m(0.7 - 1.1kgf.m, 5.1 - 8.0 lb-ft)





4. Installation is the reverse of removal.

Inside Rear View Mirror Replacement

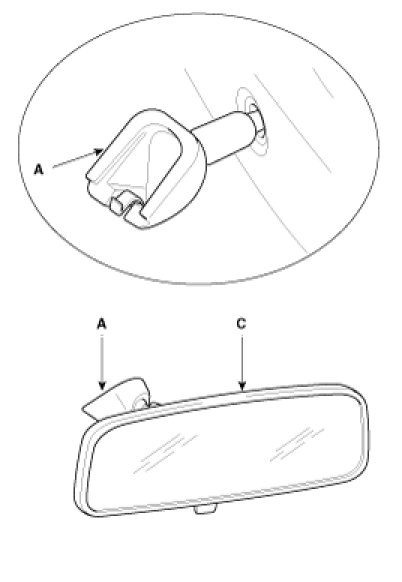

1. Push the inside rear view mirror base (A) up to remove to inside rear view mirror assembly (C).




2. Installation is the reverse of removal.

ECM Mirror Replacement

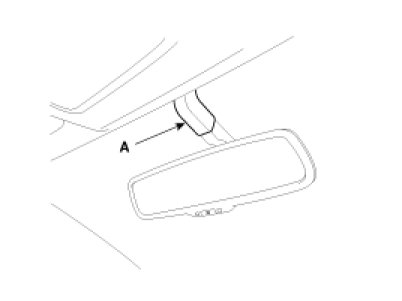

1. Gently detach the hook, then remove the ECM mirror cover (A).

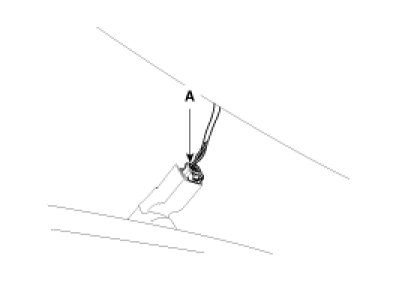

2. Disconnect the connector (A).

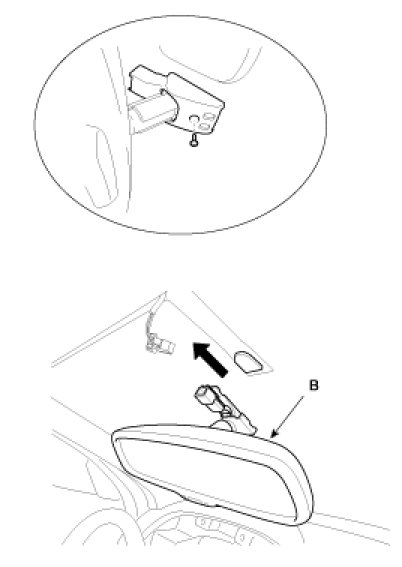

3. Push the ECM mirror base up to remove the ECM mirror assembly (B).




4. Installation is the reverse of removal.
