Front Pillar Trim Replacement

Front Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

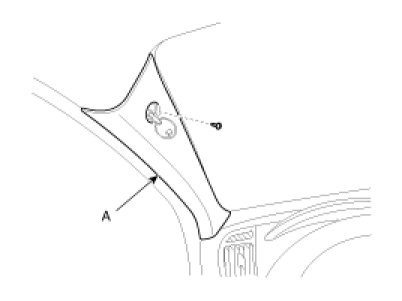

1. After loosening the mounting screw, then remove the front pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
Replace any damage clips.
