Coupe

Glove Box Replacement

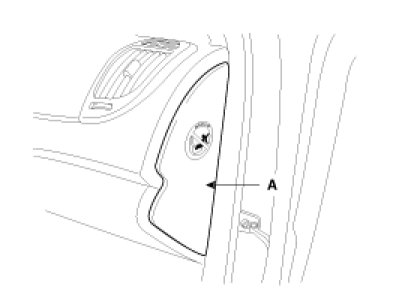

1. Crash pad side cover (A).

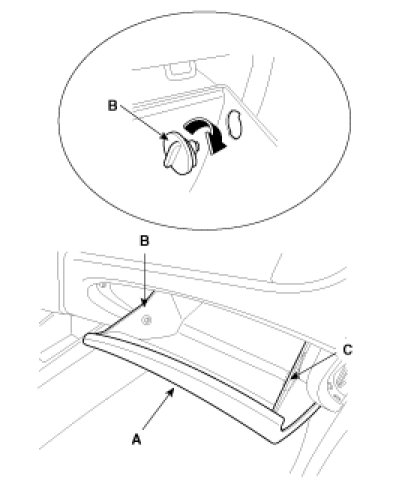

2. Disconnect the damper (B) from the glove box (A).
3. Disconnect the damper (C).

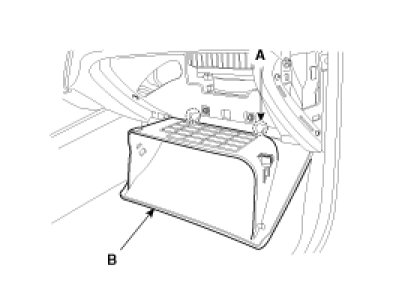

4. Disconnect the pin (A), then remove the glove box (B).

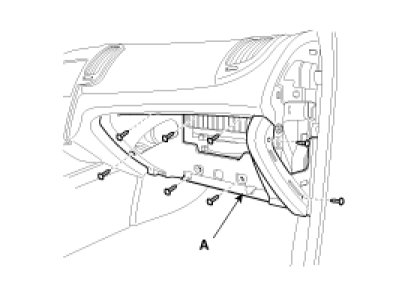

5. After loosening the mounting screws, then remove the glove box housing (A).




6. Installation is the reverse of removal.
