Lower Panel Replacement

Lower Panel Replacement

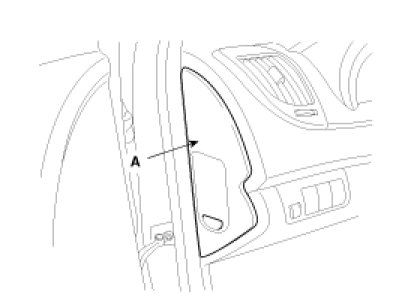

1. Remove the crash pad side cover (A).

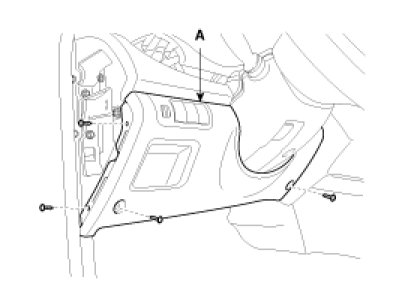

2. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).

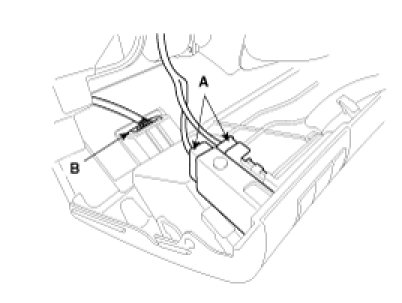

3. Disconnect the connector (A) and (B).

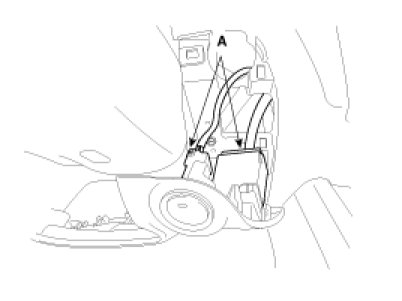

4. Disconnect the connector (A).




5. Installation is the reverse of removal.
