Repair Procedures

Replacement

Floor Console Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

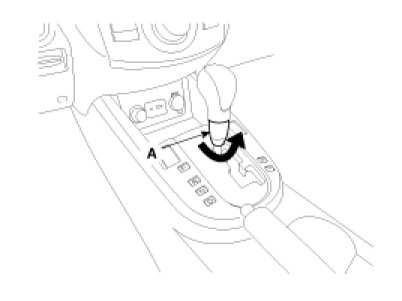

1. Disconnect the cover (A).

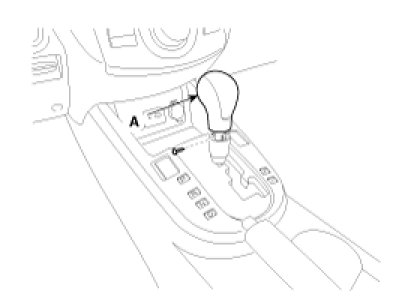

2. Remove the knob (A).

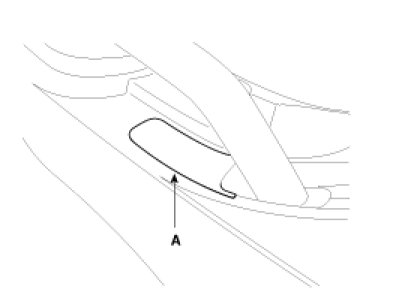

3. Remove the parking brake cover (A).

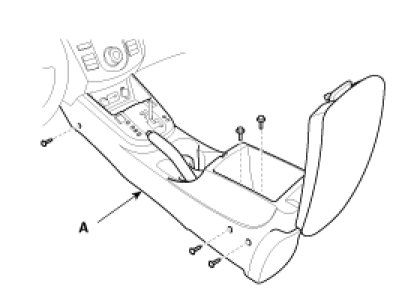

4. After loosening the console mounting screws, remove the floor console assembly (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.

Console Extenser Cover Replacement

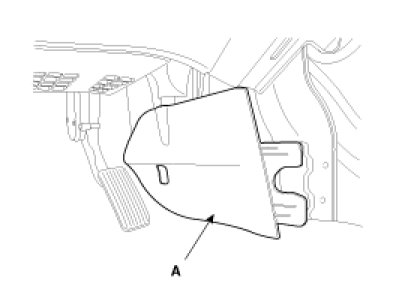

1. Remove the cover (A).




2. Installation is the reverse of removal.
