Coupe

Replacement

NOTE:
- Be careful not to damage the hood and body.
- When removing the clips, use a clip remover.

1. Remove the front bumper mounting screw.

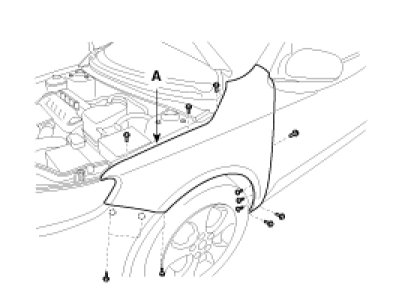

2. After loosening the fender mounting bolts, remove the fender (A).




3. Installation is the reverse of removal.
