Cowl Cross Bar

Replacement

Cowl Cross Bar Replacement
1. Remove the front seat.
2. Remove the floor console.
3. Remove the crash pad.
4. Remove the cowl top cover.

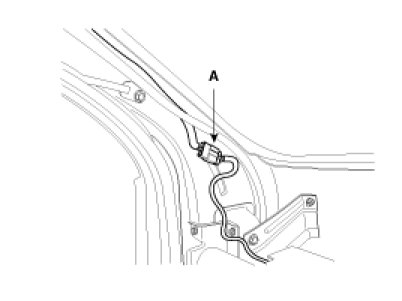

5. Disconnect the connectors (A).

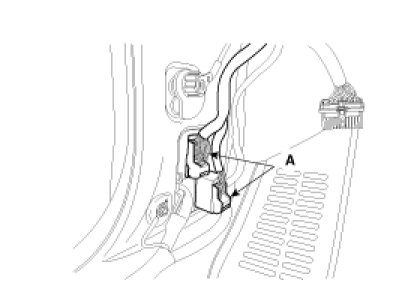

6. Disconnect the connectors (A).

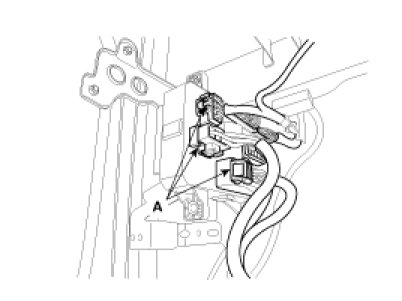

7. Disconnect the air bag connectors (A).

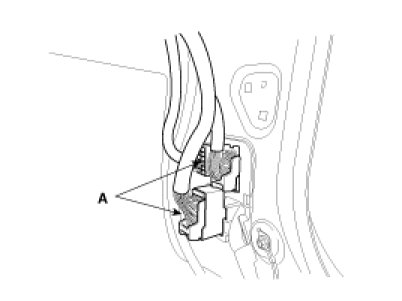

8. Disconnect the connectors (A).

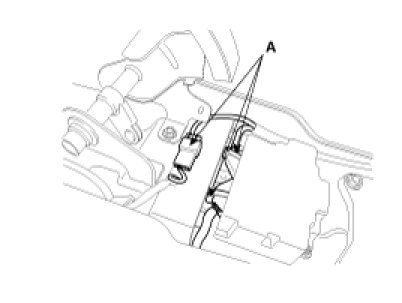

9. Disconnect the connectors (A).

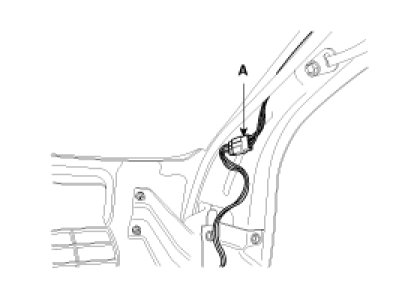

10. Disconnect the connectors (A).

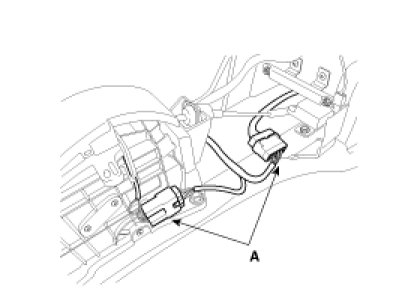

11. Disconnect the connectors (A).

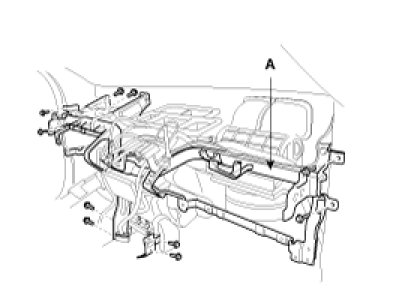

12. After loosening the mounting bolts and nuts, remove the cowl cross bar (A).




13. Installation is the reverse of removal.
