Sedan

Trunk Lid Latch Replacement

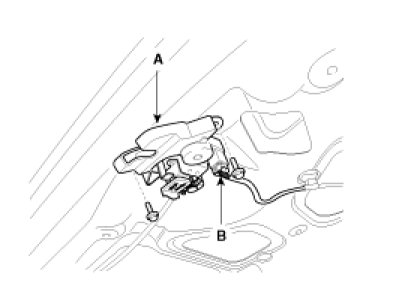

1. Remove the trunk lid trim.
2. Disconnect the connector (B).
3. After loosening the mounting bolt, then remove the latch assembly (A).

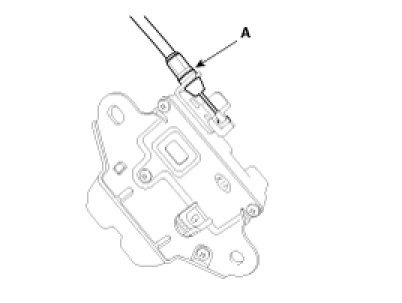

4. Disconnect the cable (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the trunk lid latch cable is connected properly.
- Make sure the trunk lid locks securely.
