Coupe

Replacement

Hood Assembly Replacement

NOTE:
- When removing and installing the hood, an assistant is necessary.
- Be careful not to damage the hood and body.
- When removing the clips, use a clip remover.

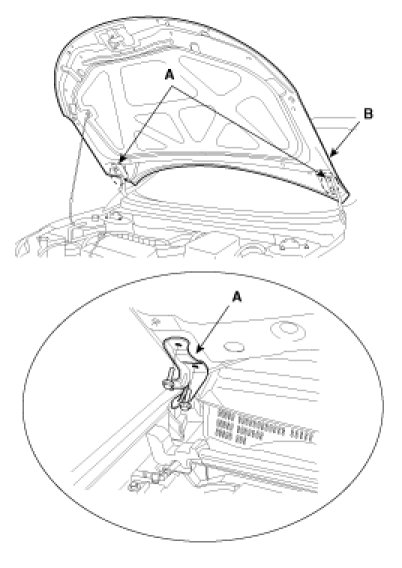

1. After loosening the hood hinge (A) mounting bolts, remove the hood (B).




2. Installation is the reverse of removal.

NOTE:
- Make sure the hood opens properly and locks securely.
- Adjust the hood alignment.
