Repair procedures

Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not bend or scratch the cover and other parts.

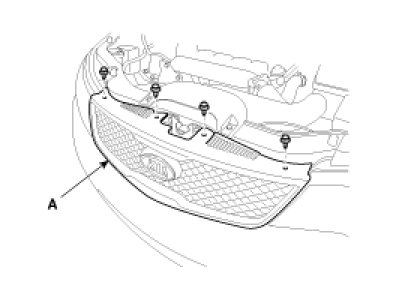

1. Remove the radiator upper cover (A).




2. Remove the bolts and clips.

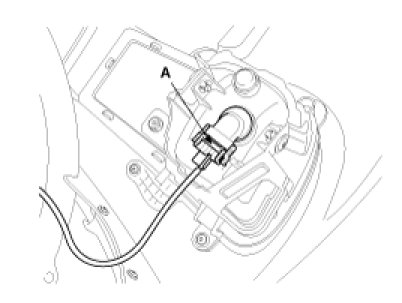

3. Disconnect the fog lamp connector (A).

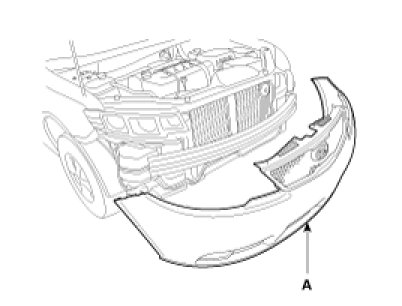

4. Remove the front bumper cover (A).




5. Installation is the reverse of removal.
