Coupe

Audio Assembly Replacement
1. Remove the center fascia panel.

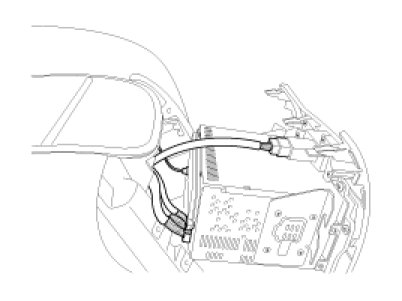

2. Disconnect the connectors.

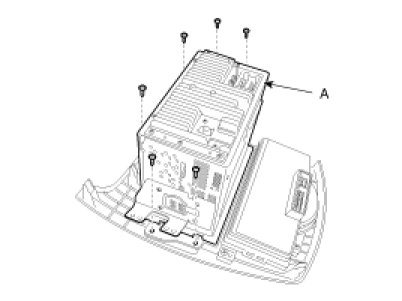

3. After loosening the audio assembly mounting screws, then remove the audio assembly (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
