Remote Control: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

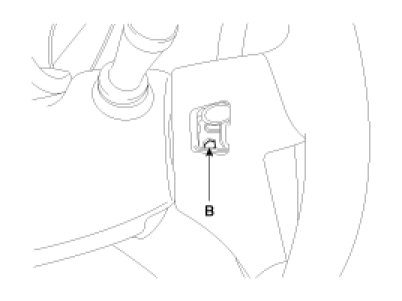

2. Remove the driver airbag module(A) after removing mounting bolts(B).









3. Remove the steering wheel after loosening the nut and disconnecting the connector(A).
.




4. Loosen the screws (4EA) on the opposite side of the steering wheel.

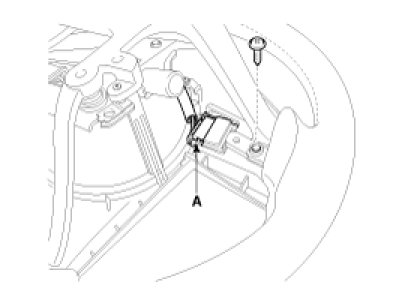

5. Disconnect the audio remote control switch connector(A).

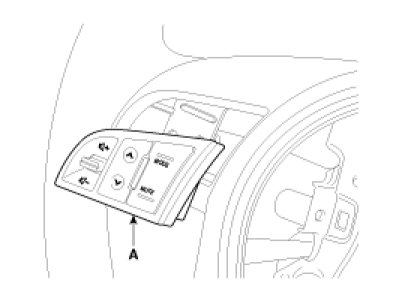

6. Remove the audio remote control switch(A).






Installation

1. Install the audio remote control switch on the steering wheel.
2. Connect the audio remote control switch connector.
3. Install the steering wheel.
4. Install the driver airbag module.
