Repair Procedures

Removal

SDARS Roof Antenna
1. Remove the rear roof trim.

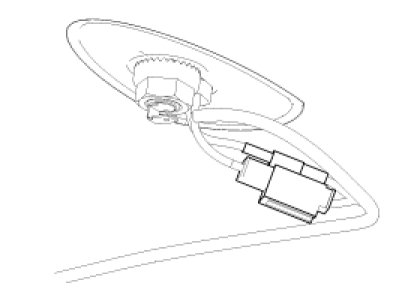

2. Disconnect the 1P power connector from the roof antenna.
3. Disconnect the antenna connectors (2EA) from the feeder cable.

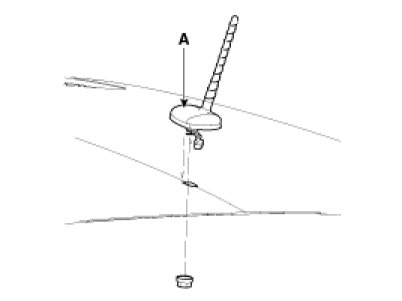

4. Remove the SDARS roof antenna (A) from the roof panel hole after loosening a nut.






Installation

1. Connect the roof antenna cables and connectors.
2. Install the rear roof trim.
